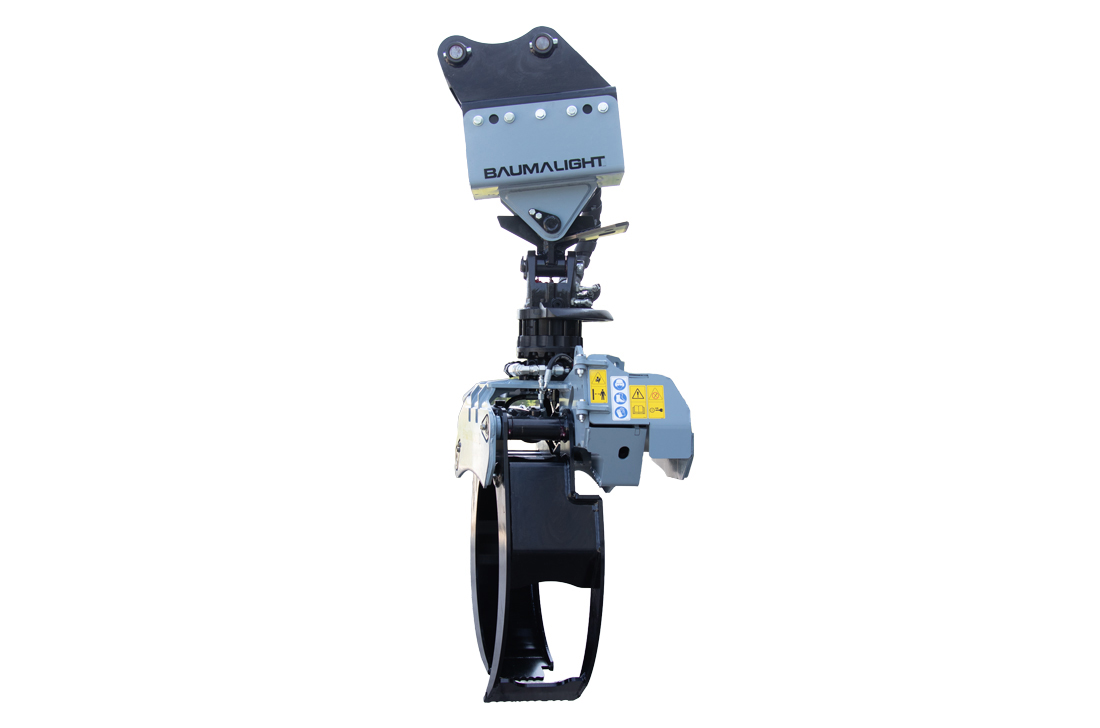

The Baumalight LXR724S is an Excavator mounted grapple saw that is very similar to our skidsteer version, they clamp and cut logs to length which can be a even greater time and labor saver because of the natural reach and versatility that comes with an excavator, this attachment is engineered with heavy-duty components and AR400 steel jaws.

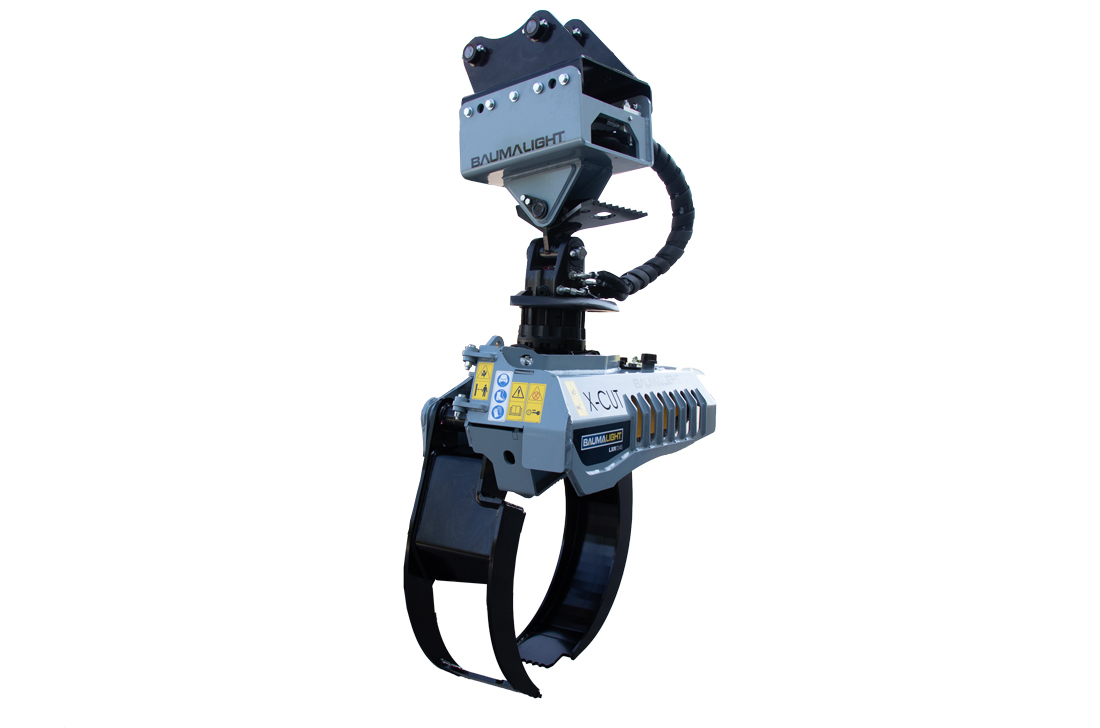

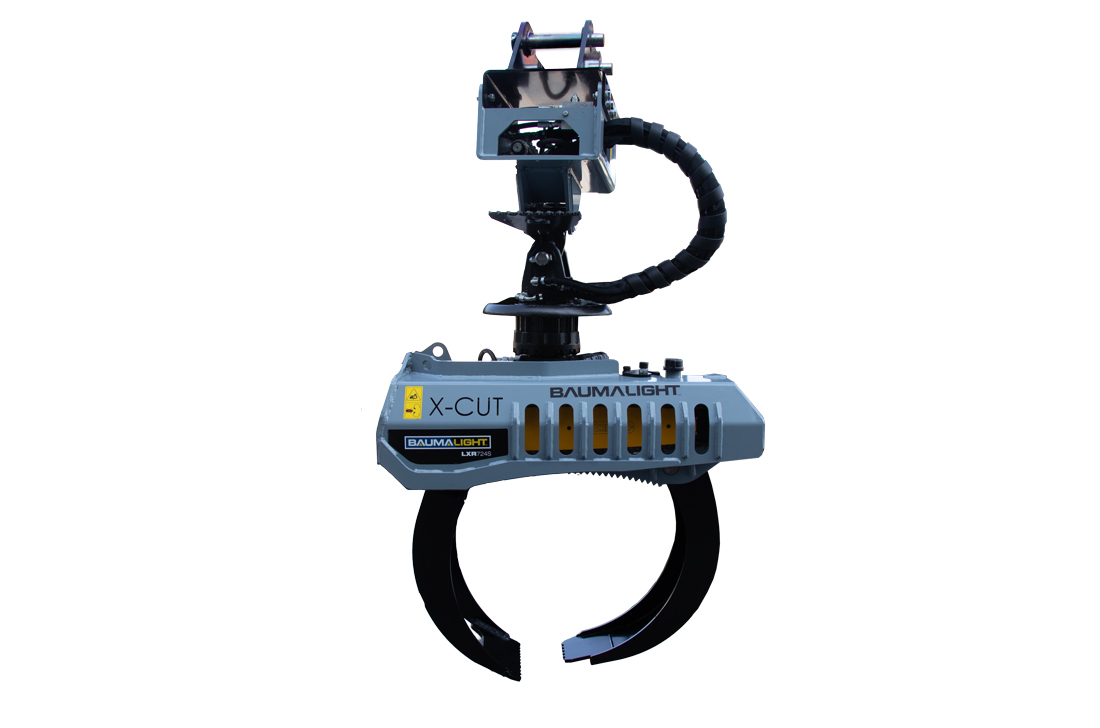

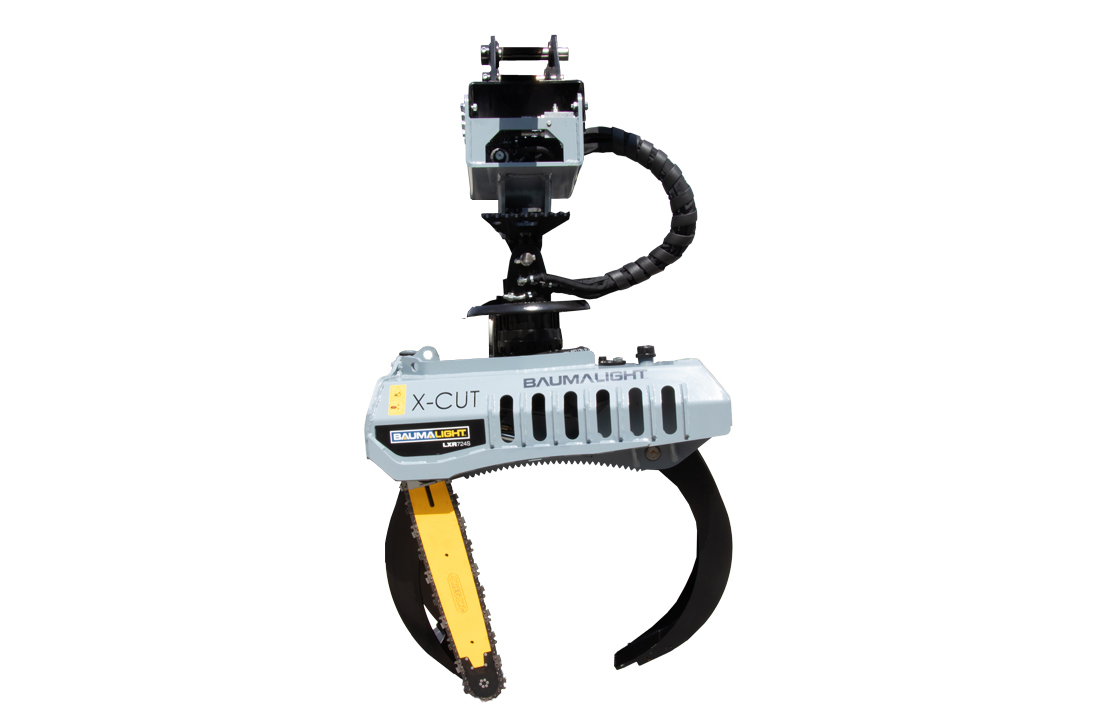

The LXR724S features a powerful integrated saw blade, giving you both a firm grip and cutting capability without getting out of the excavator. Its full 360° rotating function enables maximum maneuverability, while the heavy-duty jaw operating cylinder provides the force needed for confident clamping. For enhanced protection and longevity, hydraulic hoses are armoured and sleeved, and key access points are designed for easy maintenance. The grapple also includes a built-in oil tank, ensuring efficient hydraulic fluid management and helping reduce downtime.
Every design element of the LXR724S is focused on ease of serviceability: from structural strength and abrasion protection to ease of upkeep and flexibility in operation. Whether lifting, gripping, cutting, or loading, this grapple is your go-to solution for professional work in rough terrain or large-scale timber environments.
There are currently no customer photos or video submitted for this Baumalight product.Please check out similar products to see if there are submitted media available for those . Visit our Factory Discount web page to learn how you could participate in our Media Discount Program with your Baumalight product.
| LXI524G | LXR724S | |
|---|---|---|
| Grapple Saw | No | Yes |
| Rotation | 360° | 360° |
| Excavator Weight Range | 3.5 - 5 ton | 6 - 20 ton |
| Oil flow | 8 - 30 GPM | 25 - 42 GPM |
| Torque at 25MPA | 1350 Nm (996 lb-ft) | 3400 Nm (2508 lb-ft) |
| Clamp force at 3,000 psi | 4,539 lbs | 13199 lbs |
| Clamp force at 4,000 psi | 6,052 lbs | 17599 lbs |
| PSI | 2,500 - 4,000 | 2,500 - 4,000 |
| Minimum Opening Diameter | 3" | 3" |
| Maximum Opening | 50" | 72" |
| Min/Max log holding size | 3" - 24" | 3" - 24" |
| Width | 20" | 46" |
| Total Height | 43" | 72" |
| Weight | 600 lbs | 1038 lbs |
