Baumalight LMH316G Log Grapple
LMH316G Log Grapple – Mini Skidsteer Forestry Attachment

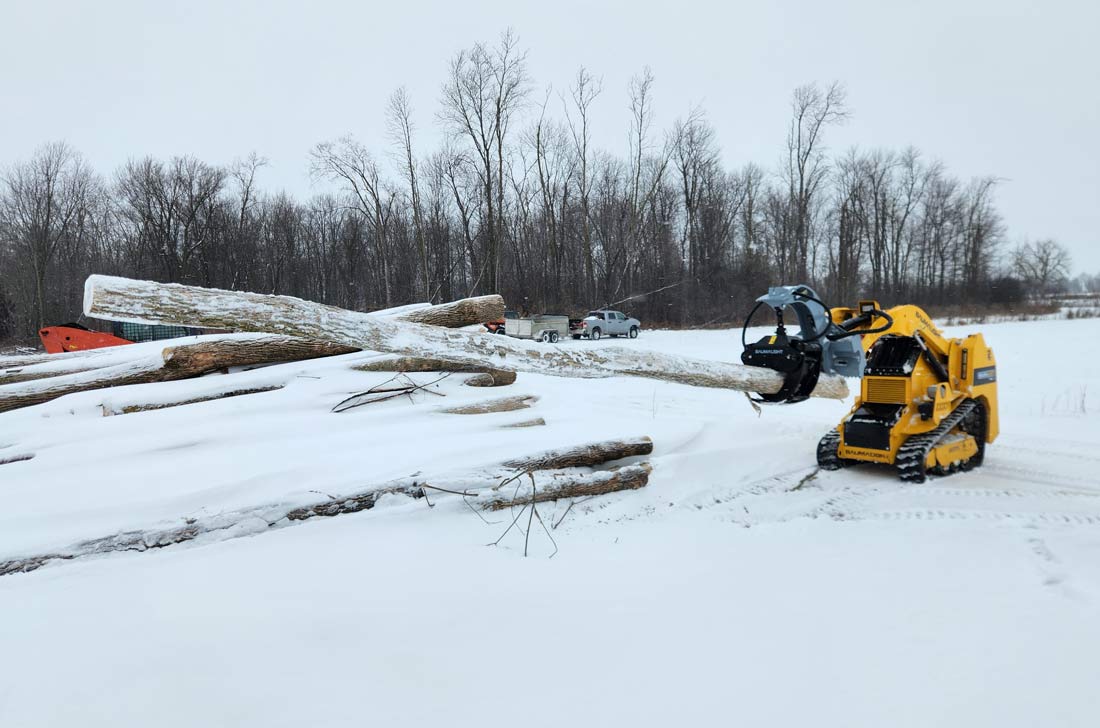

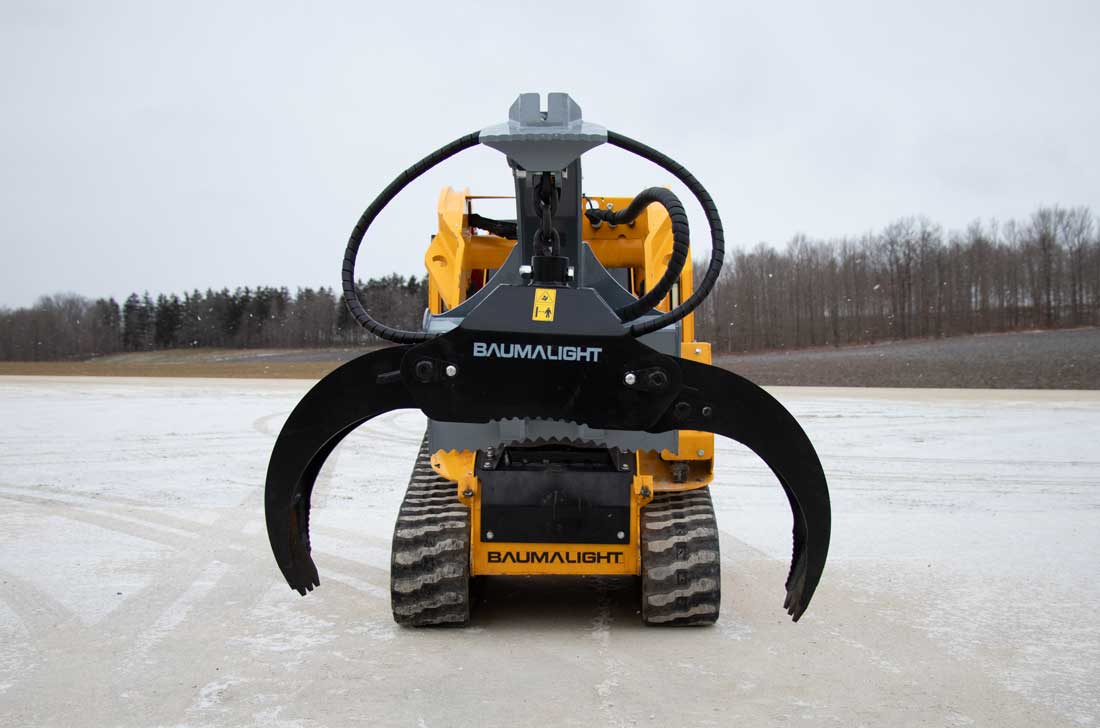

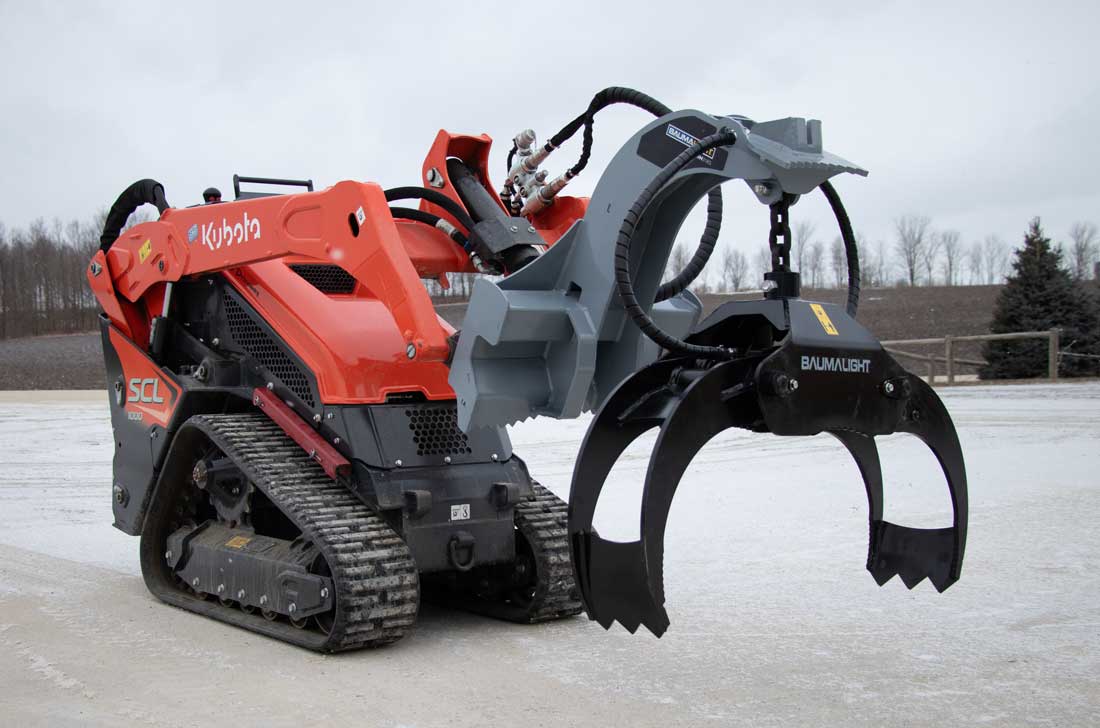

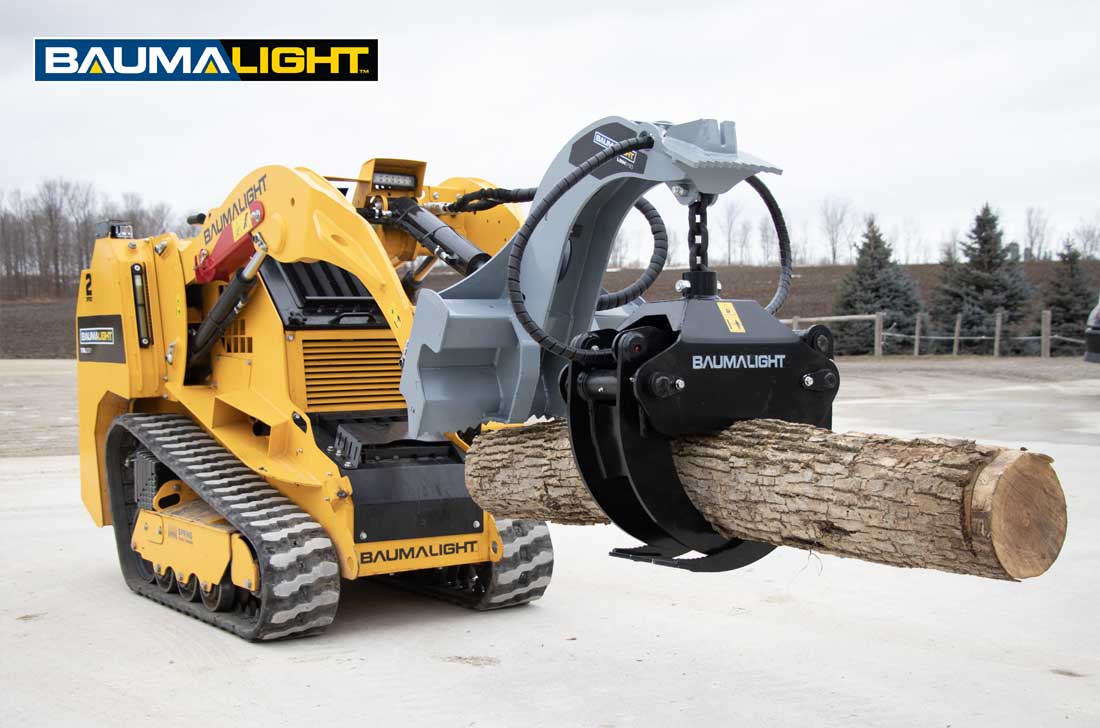

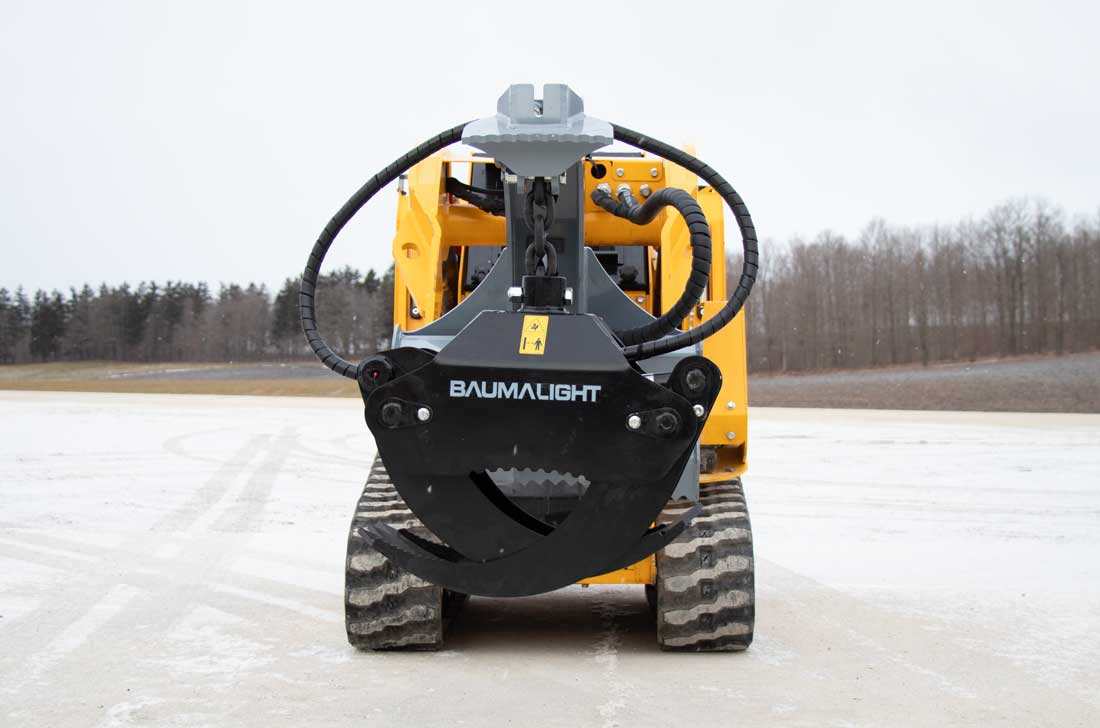

The Baumalight LMH316G Log Grapple for common industry mini skidsteer interface is a compact yet rugged attachment designed for mini track loaders. Engineered to handle logs and debris with confidence, this grapple delivers power in a lightweight frame without compromising on frame strength as AR400 steel is used.

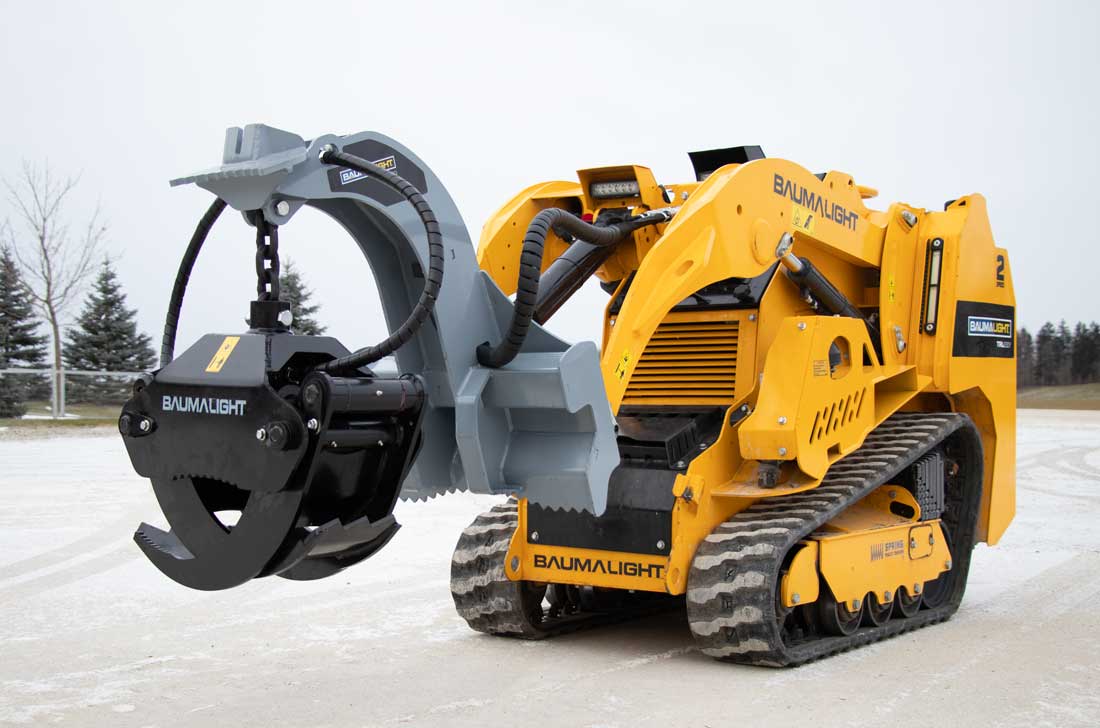

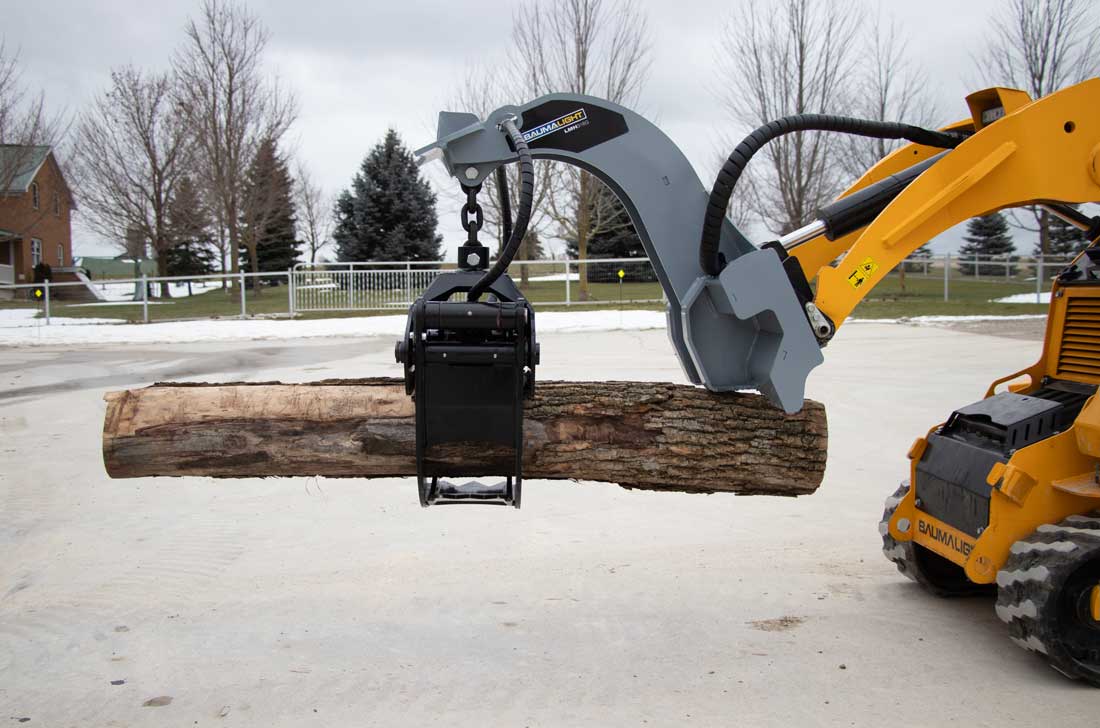

Designed with a chain rotator, featuring a dangling grapple as an entry level model. Whether twisting logs, aligning loads, or maneuvering around tight obstacles, the chain rotator ensures maximum reach and adaptability.

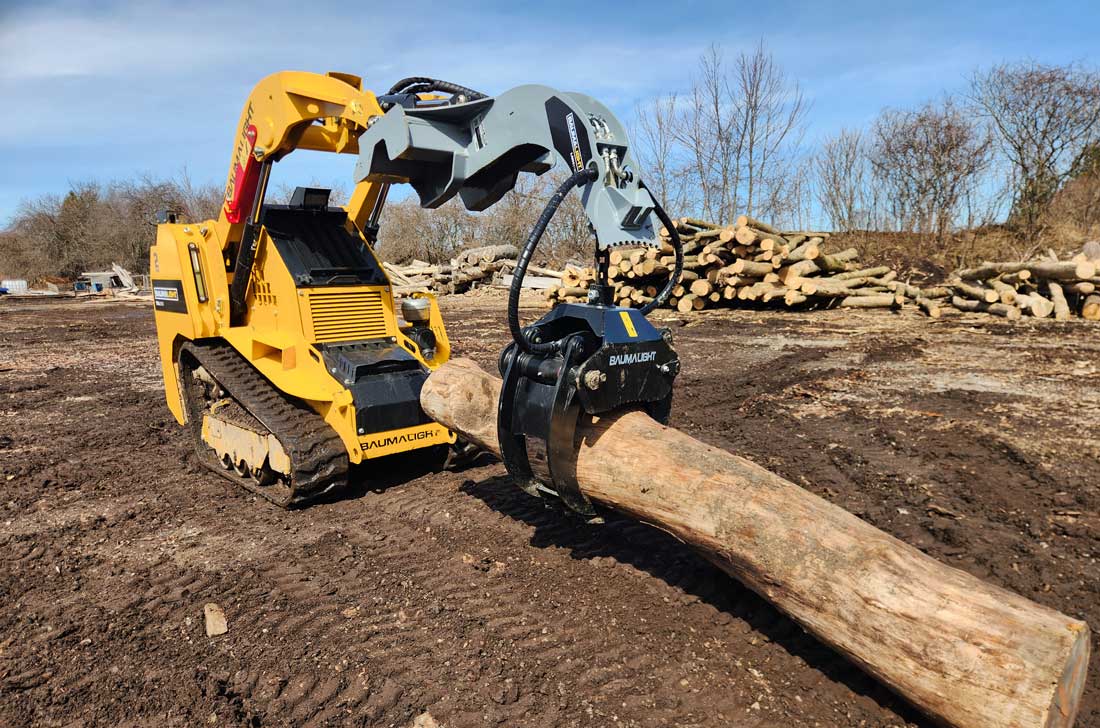

Built for tough environments, the LMH316G offers a generous grapple opening (~39.6″) while remaining suitable for smaller carriers. It achieves impressive clamp force at its rated pressure, making it reliable for forestry, landscaping, firewood handling, and cleanup work. Lightweight enough for high-agility operations yet strong enough for demanding tasks, this grapple is the choice when you want both power and maneuverability.
There are currently no customer photos or video submitted for this Baumalight product.Please check out similar products to see if there are submitted media available for those . Visit our Factory Discount web page to learn how you could participate in our Media Discount Program with your Baumalight product.
| LBH316G - BOBCAT | LMH316G | |
|---|---|---|
| Rotation | Chain | Chain |
| Engine HP Range | 12-45 | 12-45 |
| Oil flow | 5-20 GMP | 5-20 GMP |
| Torque at 25MPA | NA | NA |
| Clamp Force | 19792 lbs | 19792 lbs |
| PSI | 2,800 | 2,800 |
| Minimum Opening Diameter | 3.2" | 3.2" |
| Maximum Opening | 39.6" | 39.6" |
| Min/Max log holding size | 4"-16" | 4"-16" |
| Width | 28.6" | 34.1” |
| Total Height | 45.4" | 45” |
| Weight | 705 lbs | 377.3 lbs |
