Baumalight LMR316G Log Grapple
LMR316G Log Grapple – Mini Skidsteer Forestry Attachment

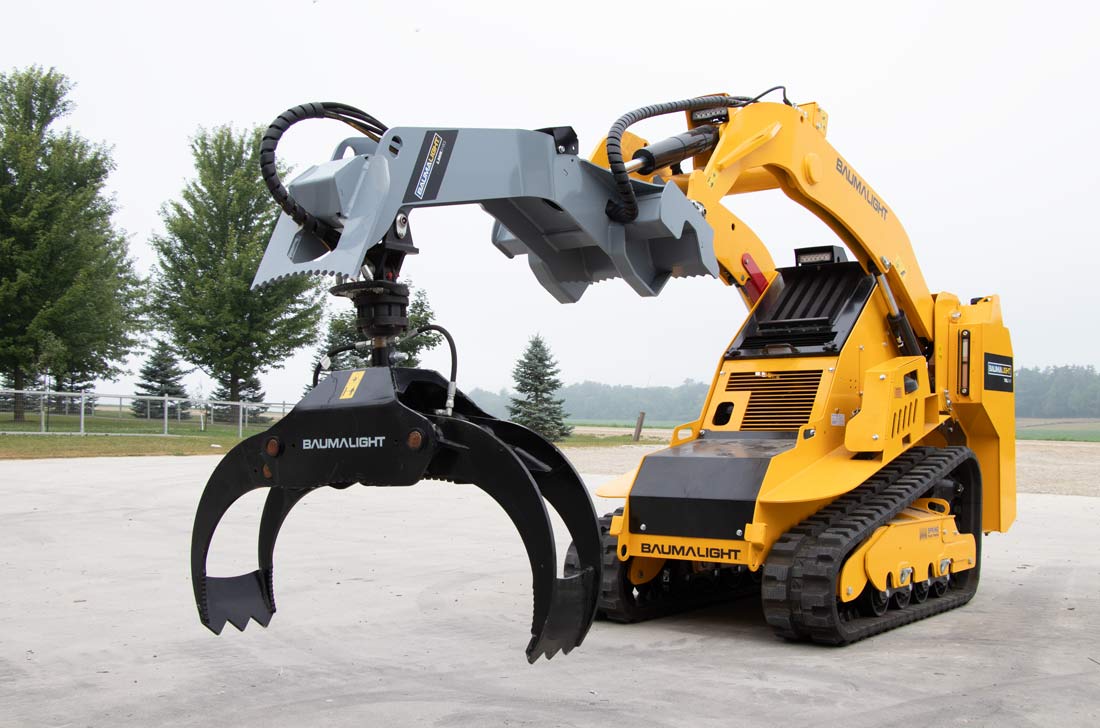

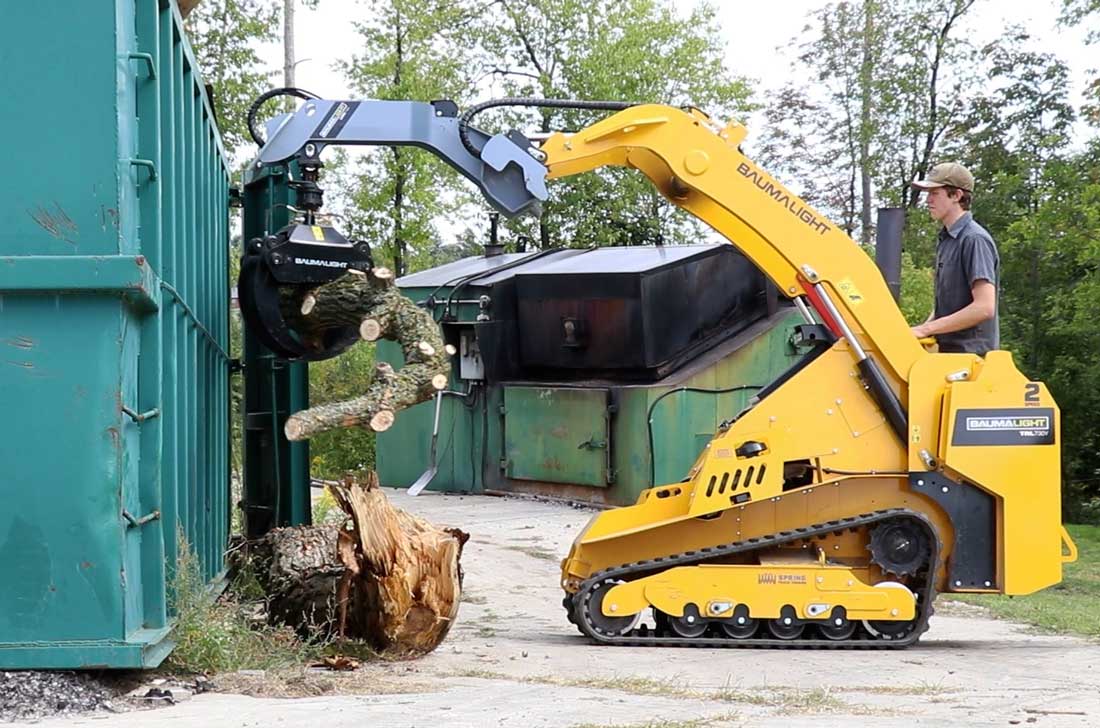

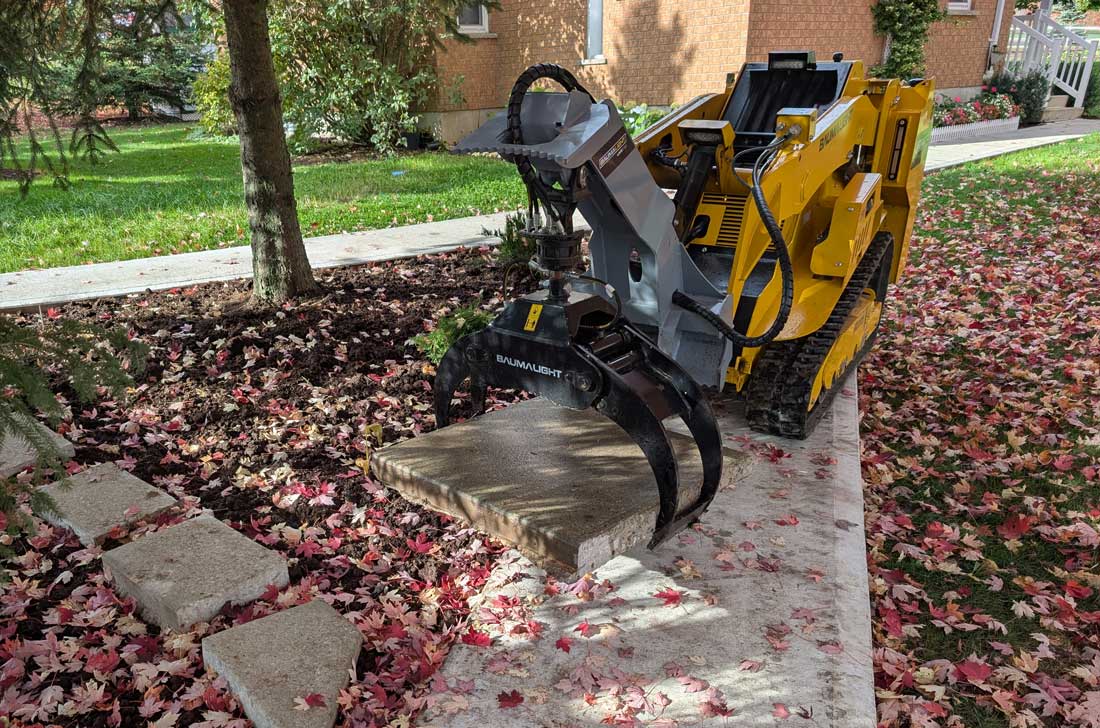

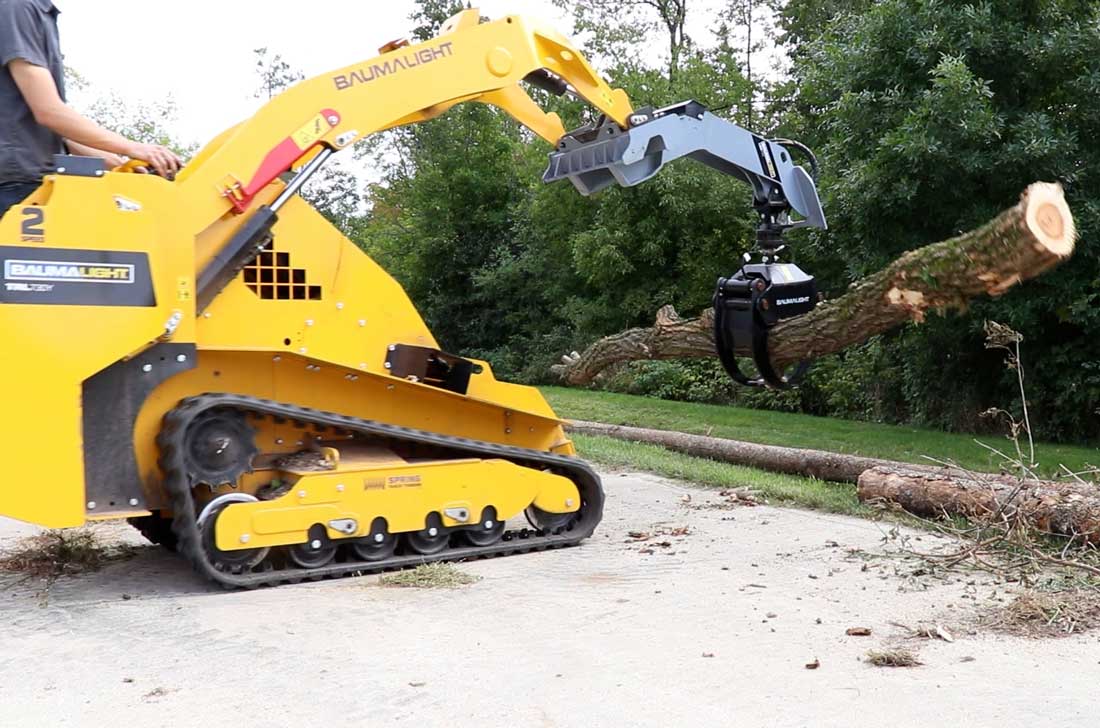

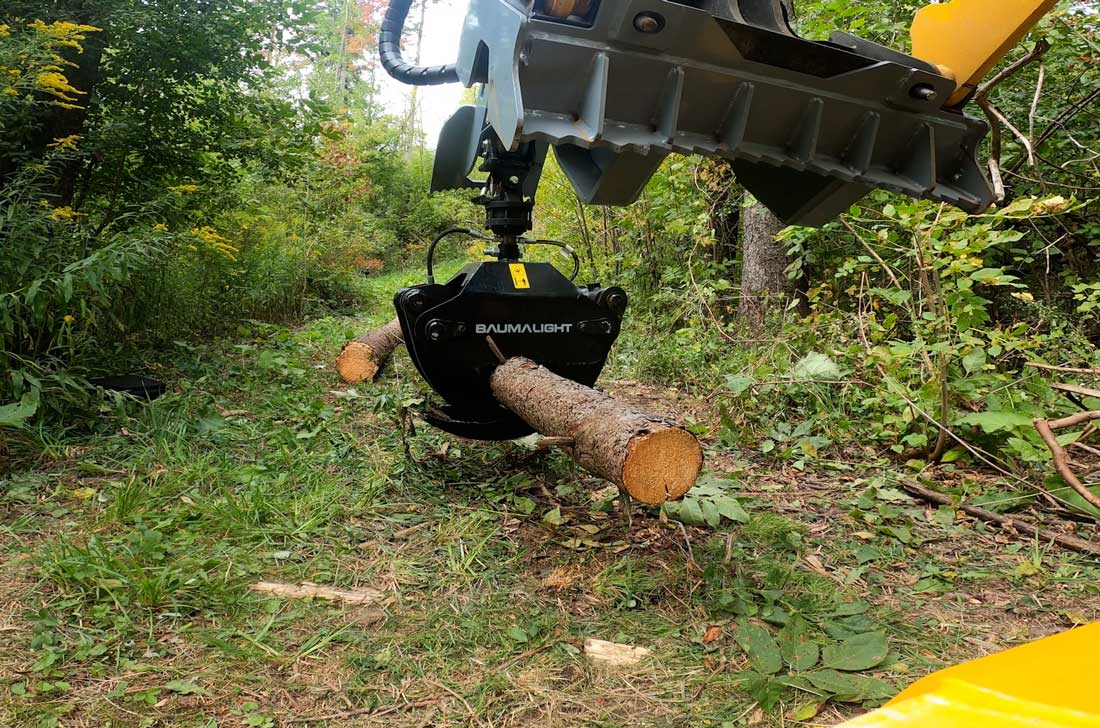

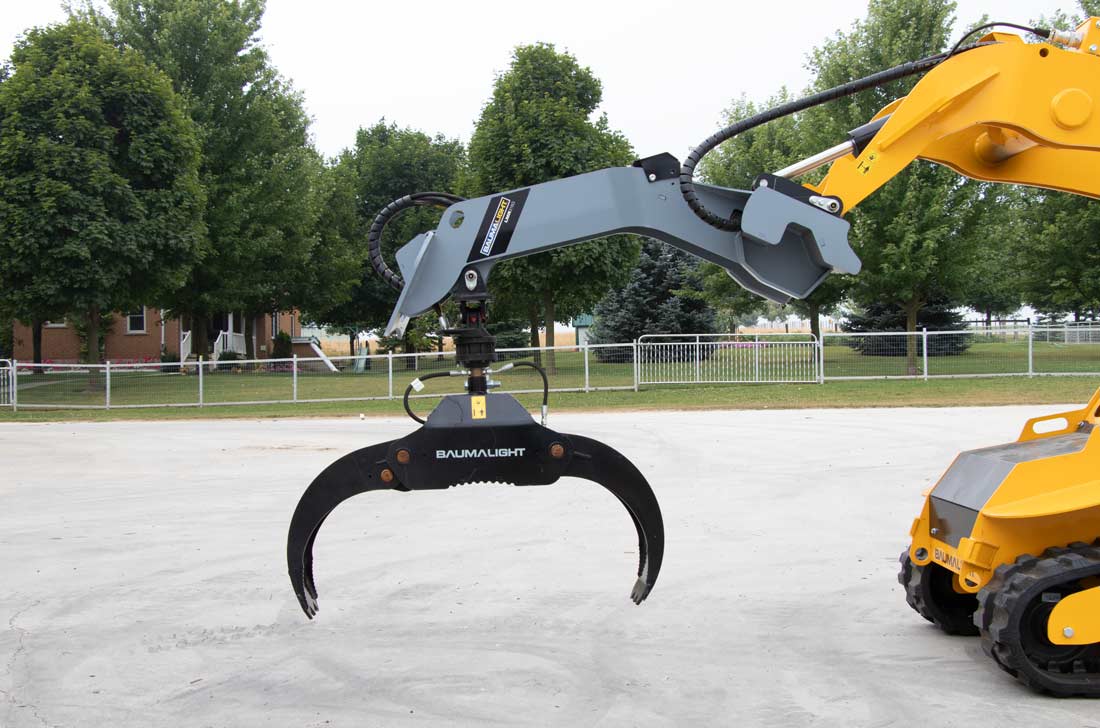

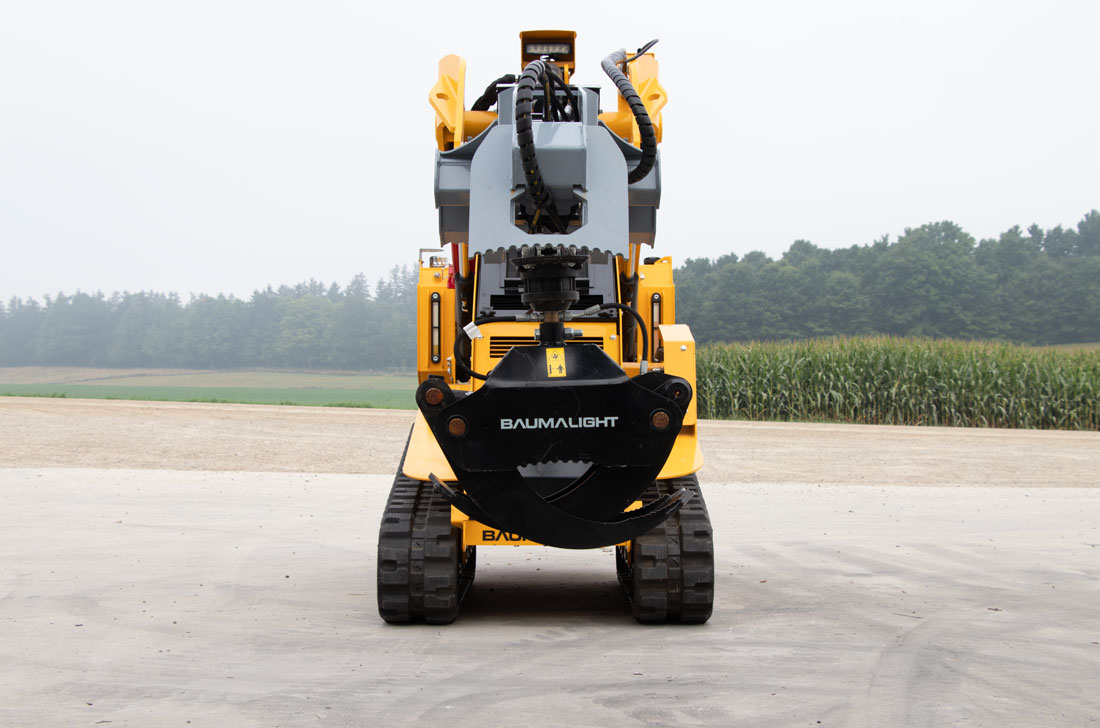

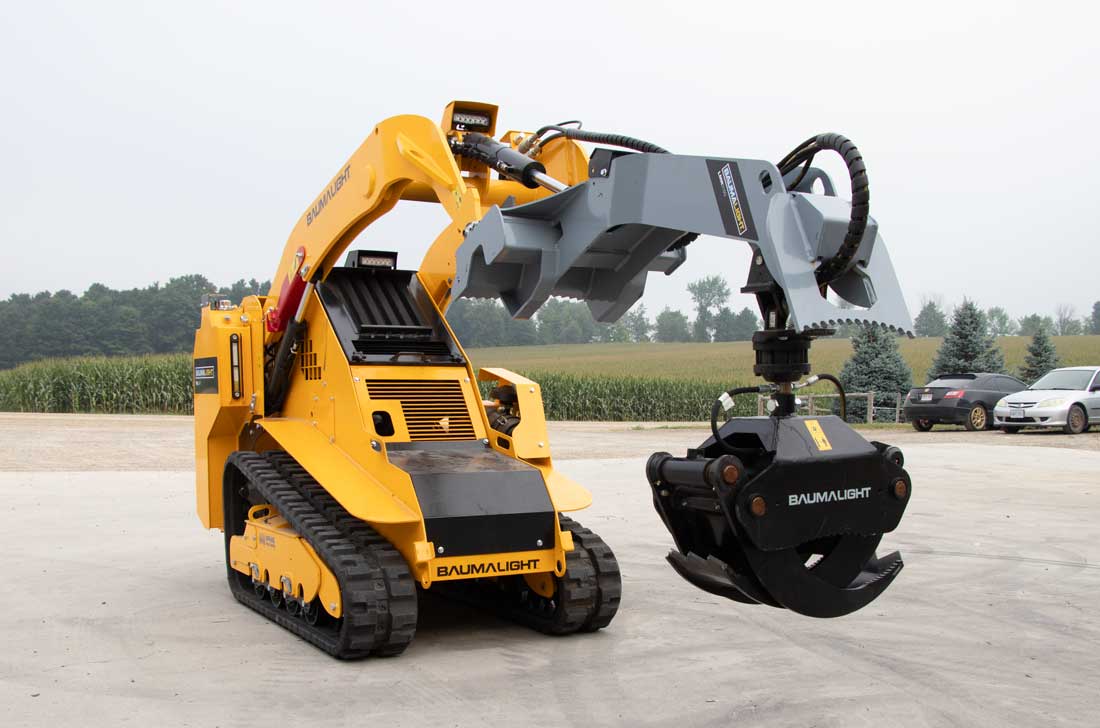

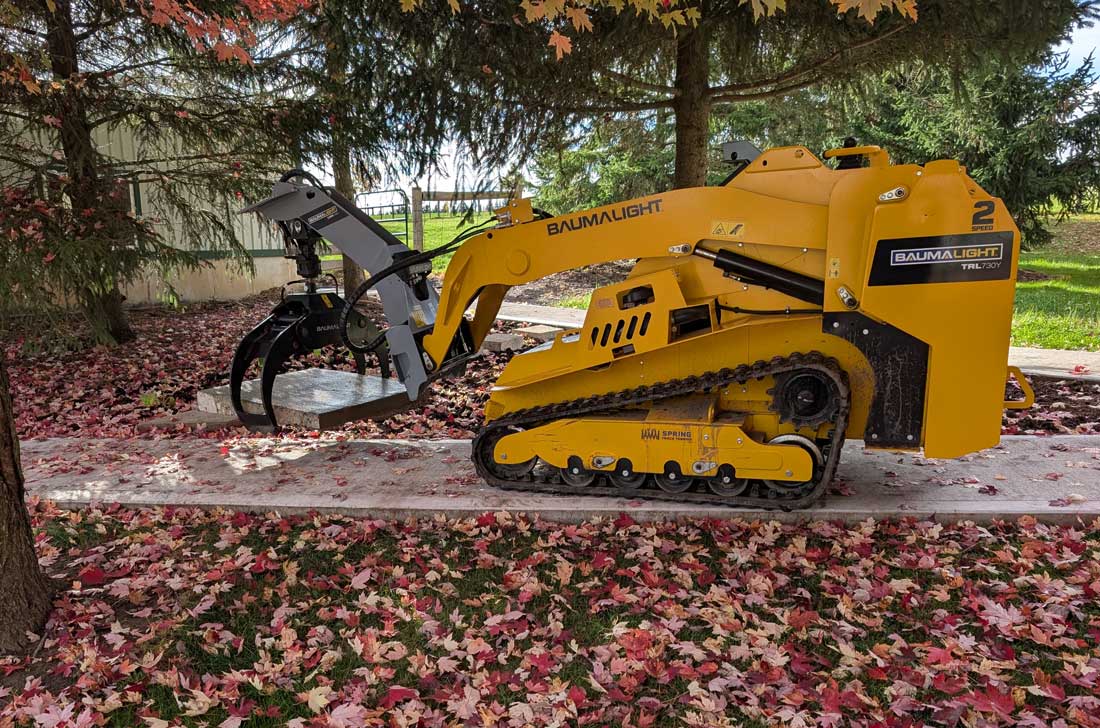

Introducing the Baumalight LM316G Log Grapple, a compact yet rugged attachment designed for mini skid-steers, where precision, durability, and full mobility matter. Engineered to handle logs and debris with confidence, this grapple delivers power in a lightweight frame without compromising on flexibility or control.
At the core of its design is a full 360° rotator, giving you the freedom to rotate the grapple continuously, enabling precise positioning and seamless handling without needing to shift the base machine. Whether twisting logs, aligning loads, or maneuvering around tight obstacles, the 360° rotator ensures maximum reach and adaptability, letting you work smarter, not harder.
Built for tough environments, the LM316G offers a generous grapple opening (~39.65″) while remaining suitable for smaller carriers. It achieves impressive clamp force at its rated pressure, making it reliable for forestry, landscaping, firewood handling, and cleanup work. Lightweight enough for high-agility operations yet strong enough for demanding tasks, this grapple is the choice when you want both power and maneuverability.
There are currently no customer photos or video submitted for this Baumalight product.Please check out similar products to see if there are submitted media available for those . Visit our Factory Discount web page to learn how you could participate in our Media Discount Program with your Baumalight product.
| LMR316G | LBH316G - BOBCAT | LMH316G | |
|---|---|---|---|
| Rotation | 360° | Chain | Chain |
| Engine HP Range | 12-45 | 12-45 | 12-45 |
| Oil flow | 5-20 GMP | 5-20 GMP | 5-20 GMP |
| Torque at 25MPA | 450 Nm | NA | NA |
| Clamp Force | - | 19792 lbs | 19792 lbs |
| PSI | 3,625 | 2,800 | 2,800 |
| Minimum Opening Diameter | 3.2" | 3.2" | 3.2" |
| Maximum Opening | 39.6" | 39.6" | 39.6" |
| Min/Max log holding size | 4"-16" | 4"-16" | 4"-16" |
| Width | 34" | 28.6" | 34.1” |
| Total Height | 52.3" | 45.4" | 45” |
| Weight | 458 lbs | 705 lbs | 377.3 lbs |
