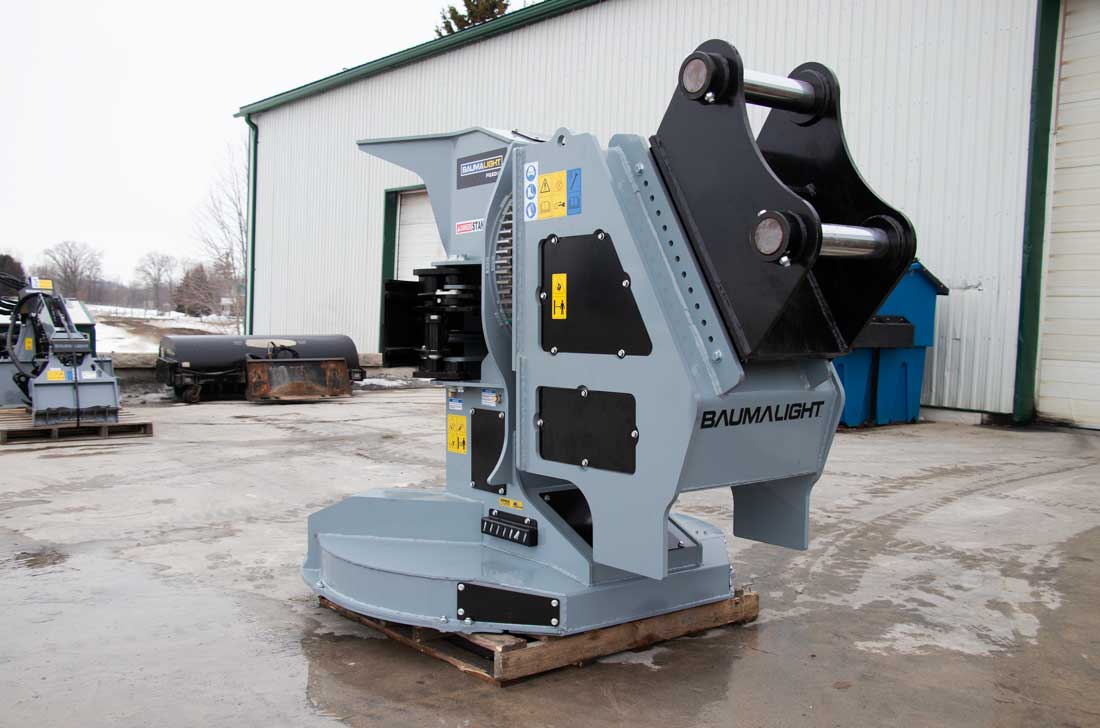

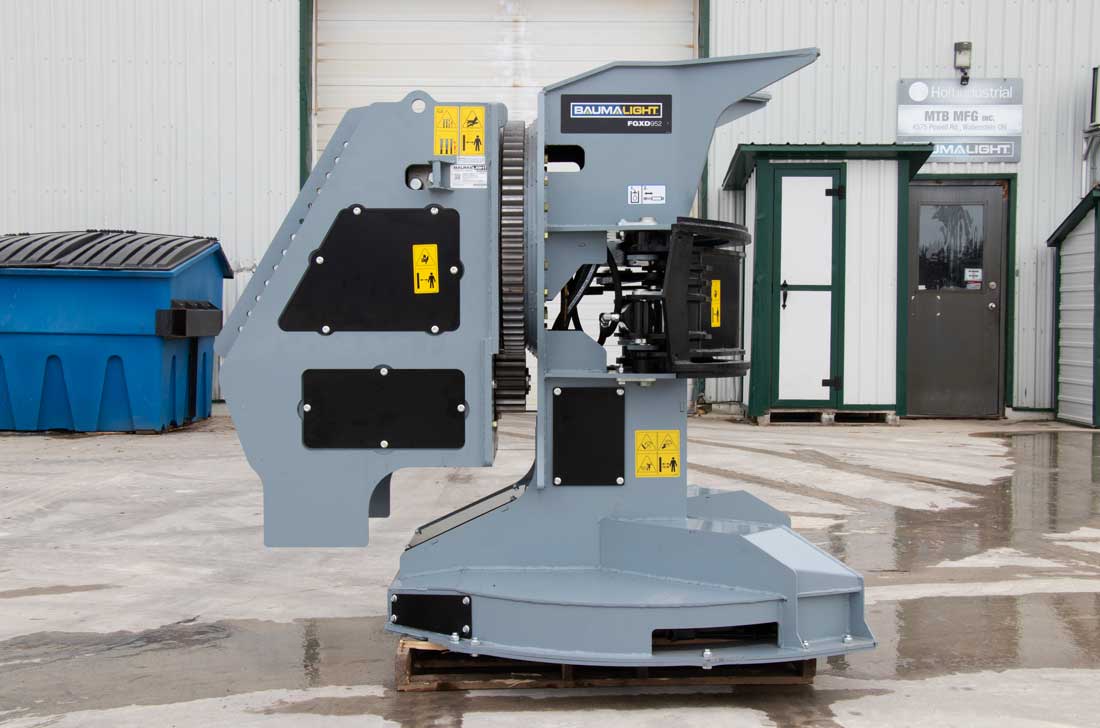

Feller Buncher For Excavator

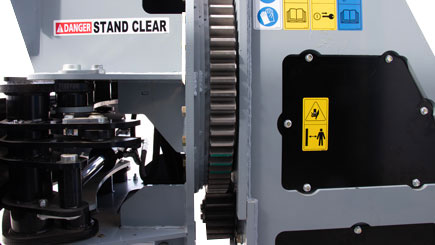

We are working to design a number of Feller Buncher models and welcome feed back in exchange for preproduction discounts. Our goal is to sell through dealers and then work with end users to develop compact harvesting solutions for skid steers and medium sized excavators. The first excavator mounted Feller Buncher we have build features a 52” cutting disc that can take up to 20” trees and is equipped with 18 beaver style cutting teeth. We also designed this excavator mounted feller buncher with a Slew Drive so there is continues rotation, no stop at any point.

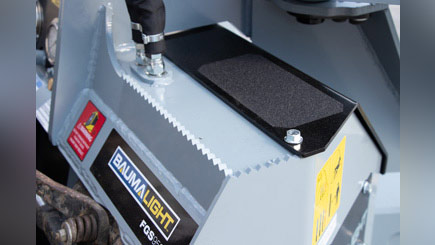

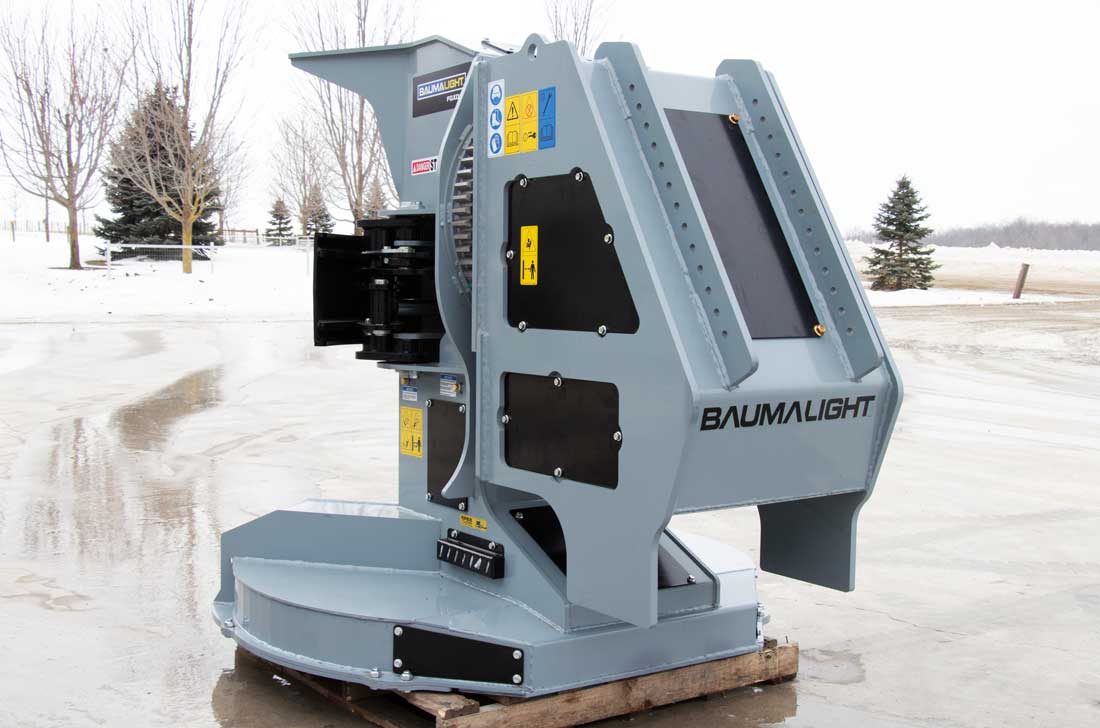

It has an electric-over-hydraulic system which operates efficiently on hydraulic flows as little as 30 gpm and a smaller model would work on lower flow yet. Only one set of remote hydraulics is required to operate all functions if you have an AUX electrical connection. We are very open to requests for new features, larger or smaller models for both skidsteer and excavator.
SOLD BY EQUIPMENT DEALERS
All Baumalight products are sold through our network of equipment dealers. For you, this means better product support, after-sales service, maintenance and product warranty from your local, trusted dealership Click here to find a local dealer.
An exception is that we sell directly to Equipment Rental Stores of most sizes. Click here for more info.
SERVICE AND INSTRUCTIONAL VIDEOS & RIGHT TO REPAIR
Baumalight offers customers a series of helpful service & instructional videos and supports the right to repair. These videos show you how to perform your own trouble shooting and repairs which can save you a lot of down time because many things can be fixed on the spot by end users. Also, after the warranty period is over, a lot of money can be saved if you can do things yourself following simple instructions on trouble shooting, maintenance and repairs.
CLICK THE VIDEO TO LEARN MORE
Locally Available Parts
At Baumalight, we design many of our products using industry - standard parts that are widely available from local supply stores, whether you're in the countryside or the city. Many replacement parts such as bearings, belts, seals, touch - up paint - even cutting teeth - can often be found through local suppliers, not just from us. Click here to Learn More

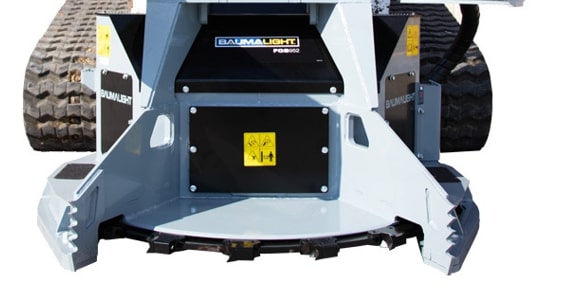

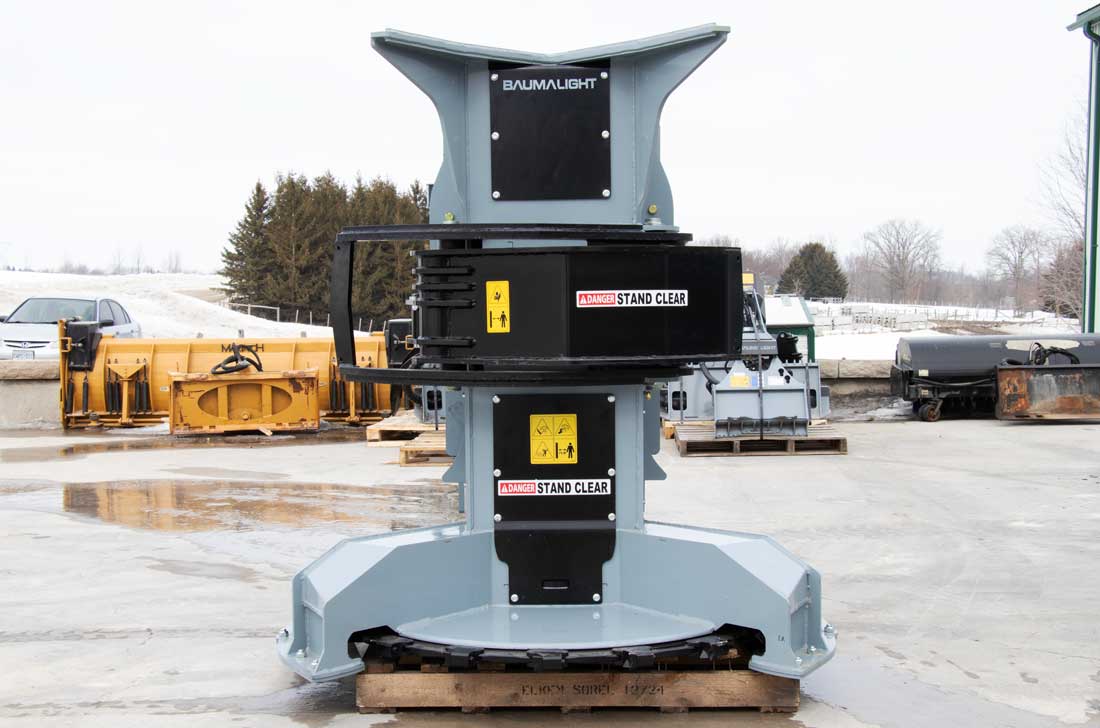

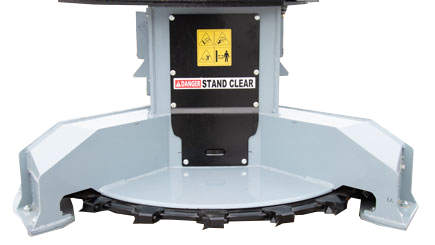

36" Throat Opening
The Feller Buncher has a 36" wide throat opening at the teeth. This allows you to do a nice low cut on trees with a wide root flair.

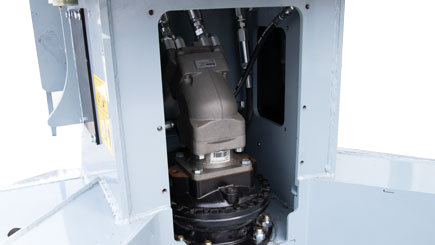

BENT AXIS PISTON MOTOR
Our industry leading bent axis piston motors make the most use of your hydraulic flow and pressure for your brush clearing needs.

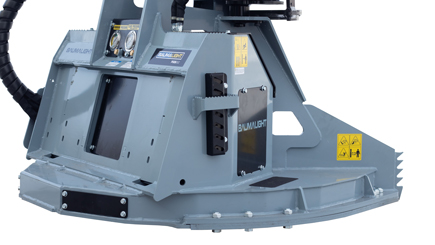

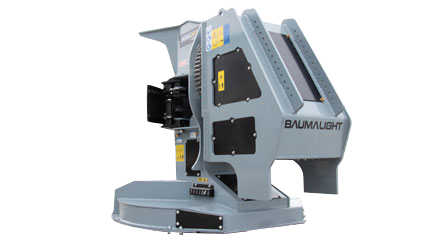

HEAVY DUTY FRAME
Heavy duty frame with T1 alloy tool steel sheet metal for all the main areas. Powder coated frame with multiple anti-slip pads to give you secure footing for ease of entry and exit from your cab.

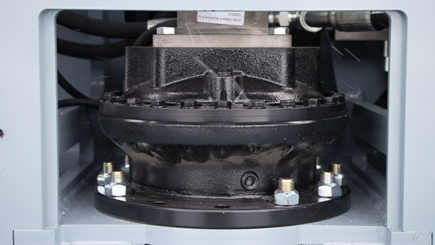

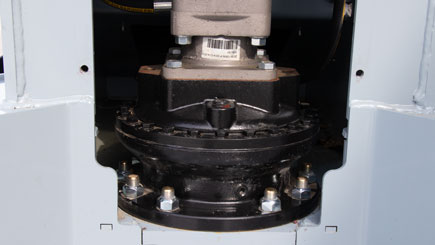

BLADE MOUNTED ON HEAVY DUTY BEARING SUPPORT
The saw blade is mounted on an overhung load adapter, which is designed with tapered roller bearings and built to stand up to the rigors of sawing limbs and trees. The overhung load adapter keeps the blade spinning in the toughest trimming conditions.

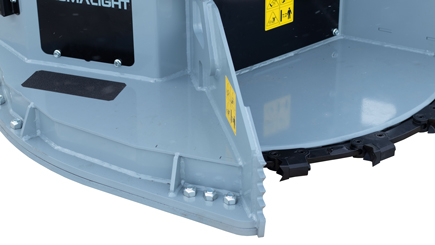

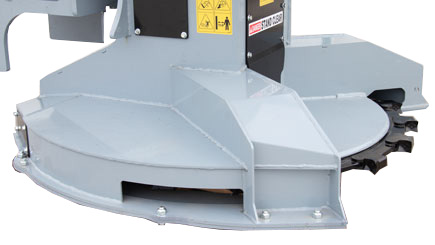

SAW BLADE SHIELDING
The durable shield encloses the blade for protection, directing the chips as it easily cuts through trees. Made with AR400 steel, the center log platform plate is designed to support the trees after they are cut.
CLEAN CUTS WITH B8000 BEAVER TEETH
The FGXD952 makes clean work of cutting trees safely and quickly, leaving the trunks and stumps with a clean
cut.
The teeth are also able to be rotated for new sharp edges.

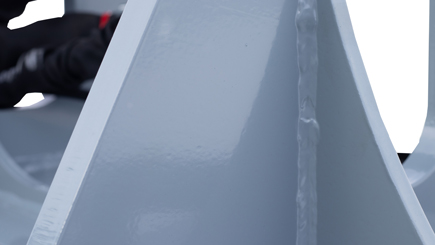

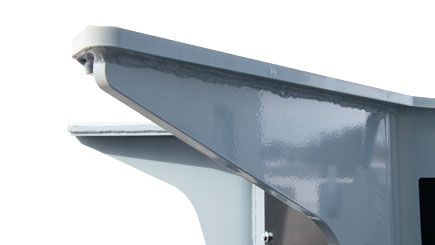

POWDERED COATED
Our powder coat finish is much tougher than conventional paint to stand up to the rigors of forestry and helps prevent rusting.

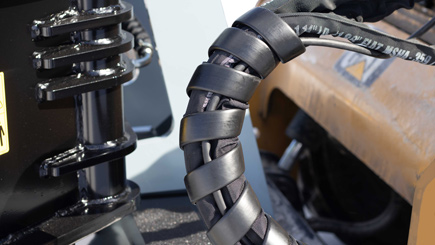

ARMOURED AND SLEEVED HOSES
Baumalight hoses are sleeved for the operator and hose protection. A pivoting arm is also standard with a greaseable pin keeping the slack out of the way which protects the hoses from dangerous pinching and strain.

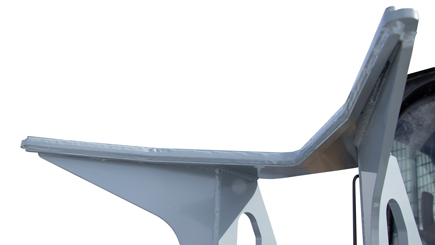

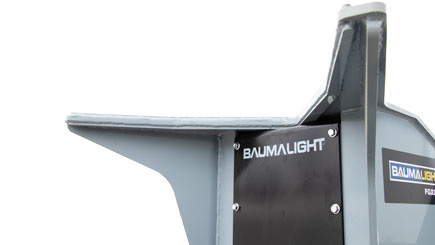

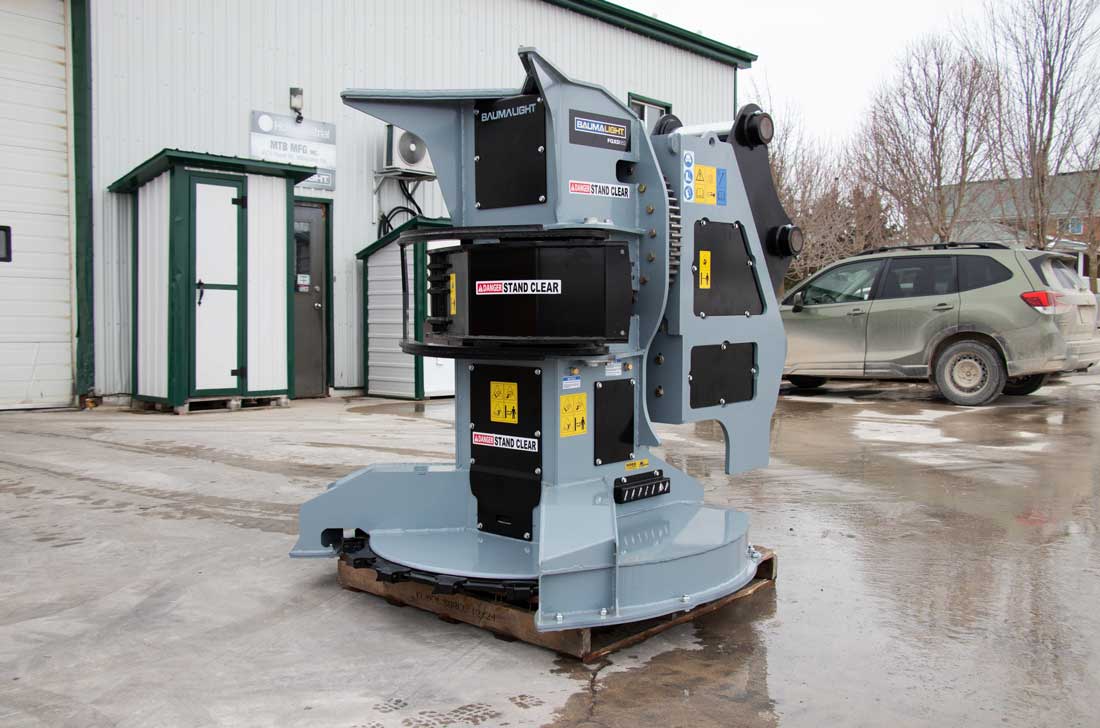

ROUNDED EDGES ON PUSH BAR/FELLER HOOK
To prevent trees from catching, the FGXD952 is designed with rounded edges on the push bar so they more easily slid as you push into a leaning tree.

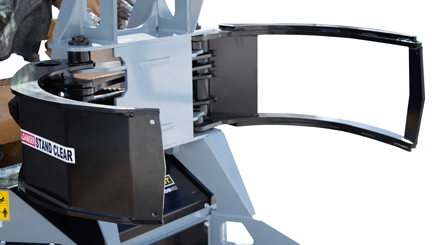

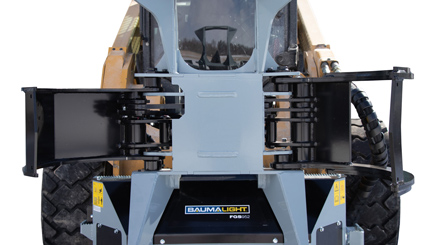

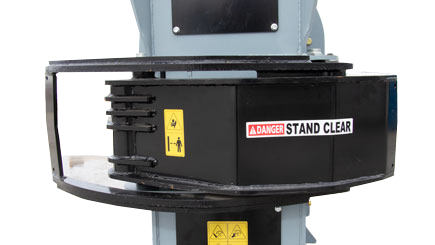

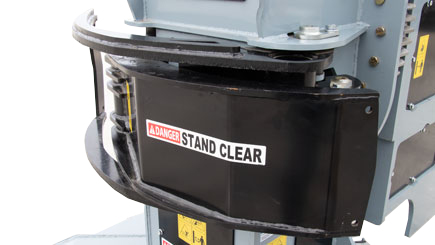

GRABBER ARMS
The grabber arms have a robust design and are made with AR400 steel. The adjustable swing speed allows the operator better control when grabbing trees.

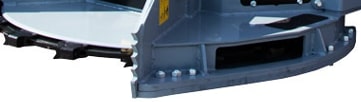

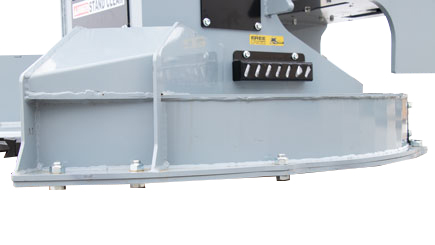

BOLT-ON SKIS
The skis are bolt-on for easy replacement.

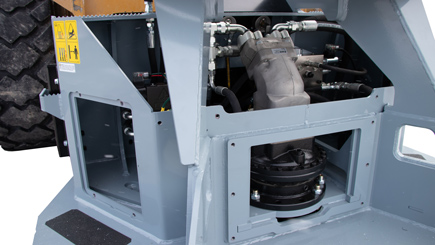

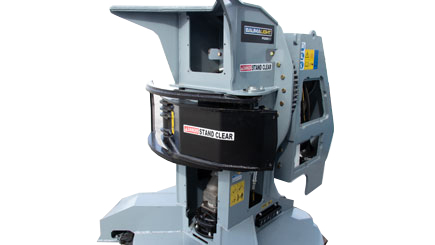

SERVICE ACCESS
When it comes time to service, the FGXD952 is designed with full access to for easier service.

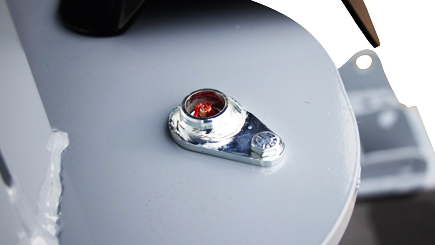

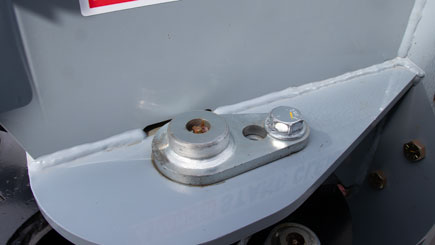

GREASEABLE PINS
Our grease pins are zinc plated to prevent corrosion which will allow for smoother operation of the units joints over their lifetime.

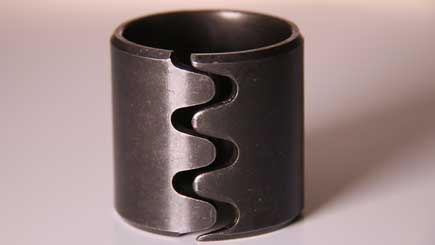

HARDENED STEEL BUSHING
Spring Bushings made from high grade chrome-vanadium AISI 6150 spring steel on all main pivot points.
There are currently no customer photos or video submitted for this Baumalight product. Please check out similar products to see if there are submitted media available for those . Visit our Factory Discount web page to learn how you could participate in our Media Discount Program with your Baumalight product.
| Model No | FBS752 | FGS952 | FGXD952 |
| Baumalight Connection Code | - | - | A03 |
| Mounting type | Skidsteer Mounted | Skidsteer Mounted | Excavator Mounted |
| Blade position | Fixed Horizontal Blade | Fixed Horizontal Blade | 360° Slew drive |
| Adaptor | Universal Skidsteer Adaptor | Universal Skidsteer Adaptor | Bolt-on Adaptor Slew Drive |
| PSI | 4000 PSI | 4000 PSI | 4000 PSI |
| Case drain | Requires Case Drain - Critical | Requires Case Drain - Critical | Requires Case Drain - Critical |
| Electrical Requirement | Requires 12V Electric | Requires 12V Electric | Requires 12V Electric |
| Electric AUX | Four 12V positive switchable signals required | Two 12V positive switchable signals required | Six 12V positive switchable signals required |
| Wire Supplied or not | Wire Supplied to AUX | Wire Supplied to AUX | Wire NOT Supplied |
| Hydraulic Hose and Couplers | Hoses Included Couplers NOT Included |
Hoses Included & Couplers NOT Included | Hoses & Couplers NOT Included |
| Blade diameter | 52" Diameter Blade | 52" Diameter Blade | 52" Diameter Blade |
| Maximum cut | 20" Max Cut | 20" Max Cut | 20" Max Cut |
| Blade Material | 3/4" Steel Blade | 5/8" AR400 | 3/4" Steel Blade |
| Cutt thickness | 1 5/8" Cutt Thickness | 1 5/8" Cutt Thickness | 1 5/8" Cutt Thickness |
| Number of edges per Tooth | 4 Edges Per Tooth | 4 Edges Per Tooth | 4 Edges Per Tooth |
| Number of teeth | 18 Teeth | 18 Teeth | 18 Teeth |
| Tooth part number | B8000 Beaver Teeth | B8000 Beaver Teeth | B8000 Beaver Teeth |
| Throat Opening at teeth | Throat Opening at teeth: 36" | 36" Throat Opening | 36" Throat Opening |
| Weight | 2850 lbs | 2250 lbs | 4415 lbs |
|
