DT515RH Self Propelled Mini Dumper – Tracked

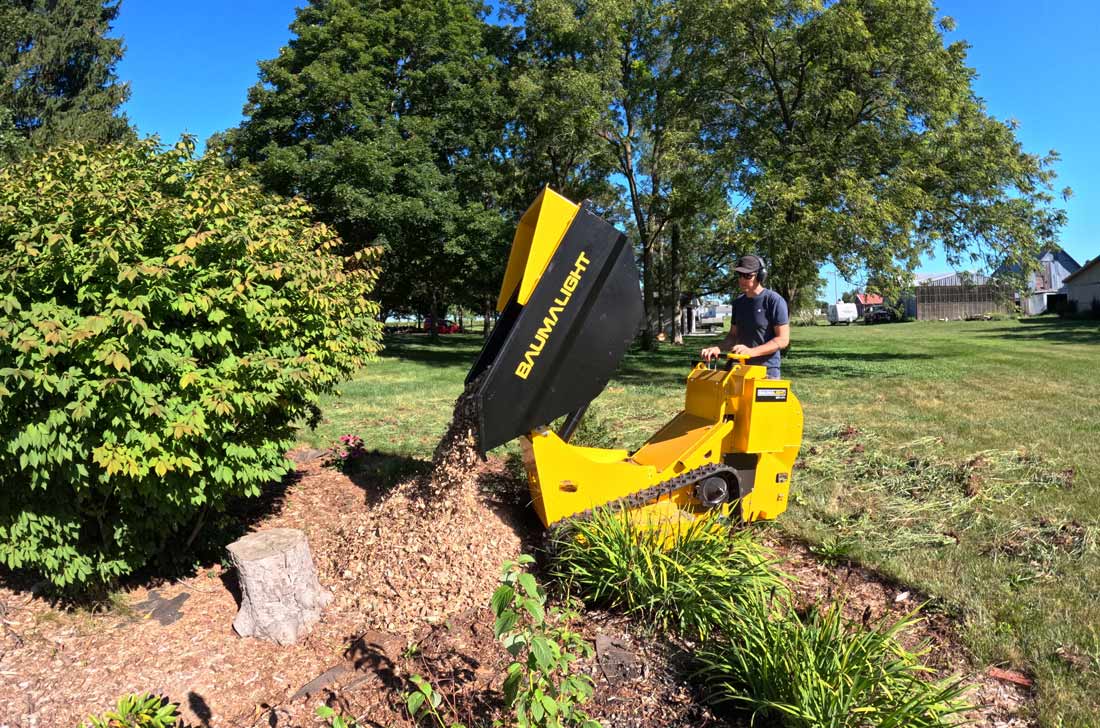

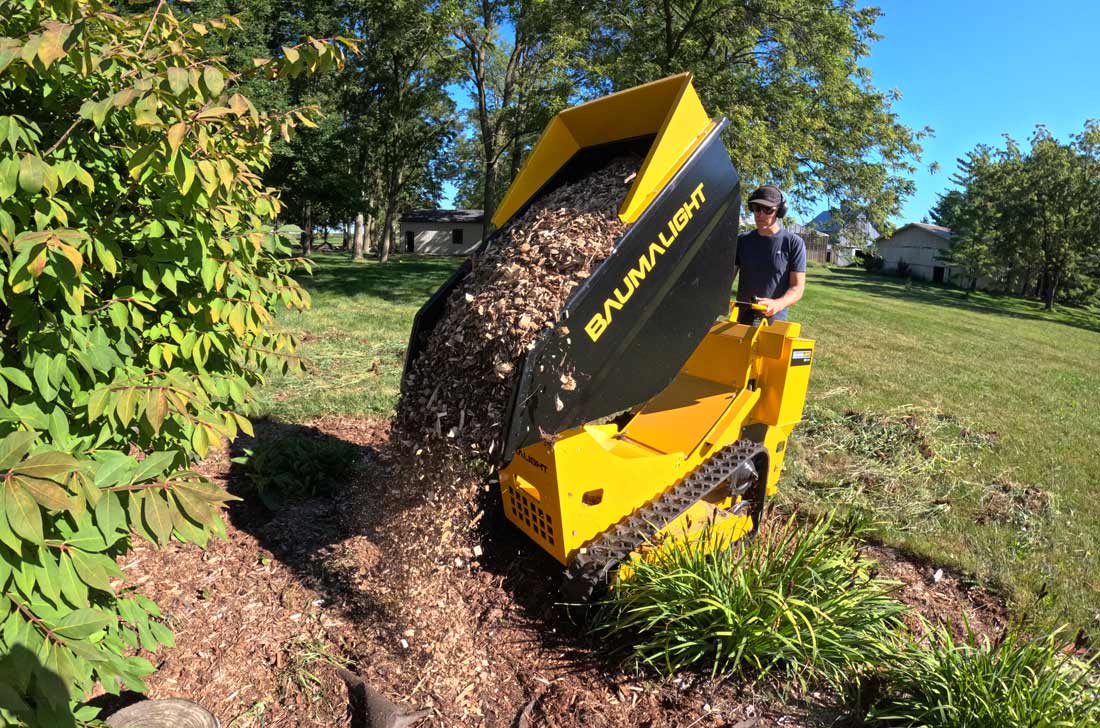

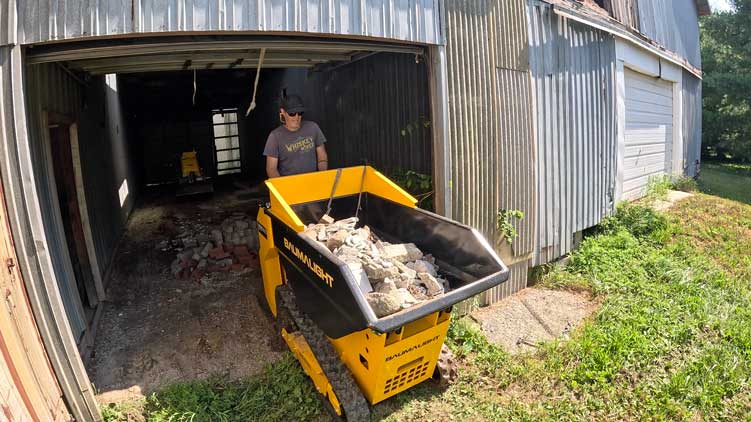

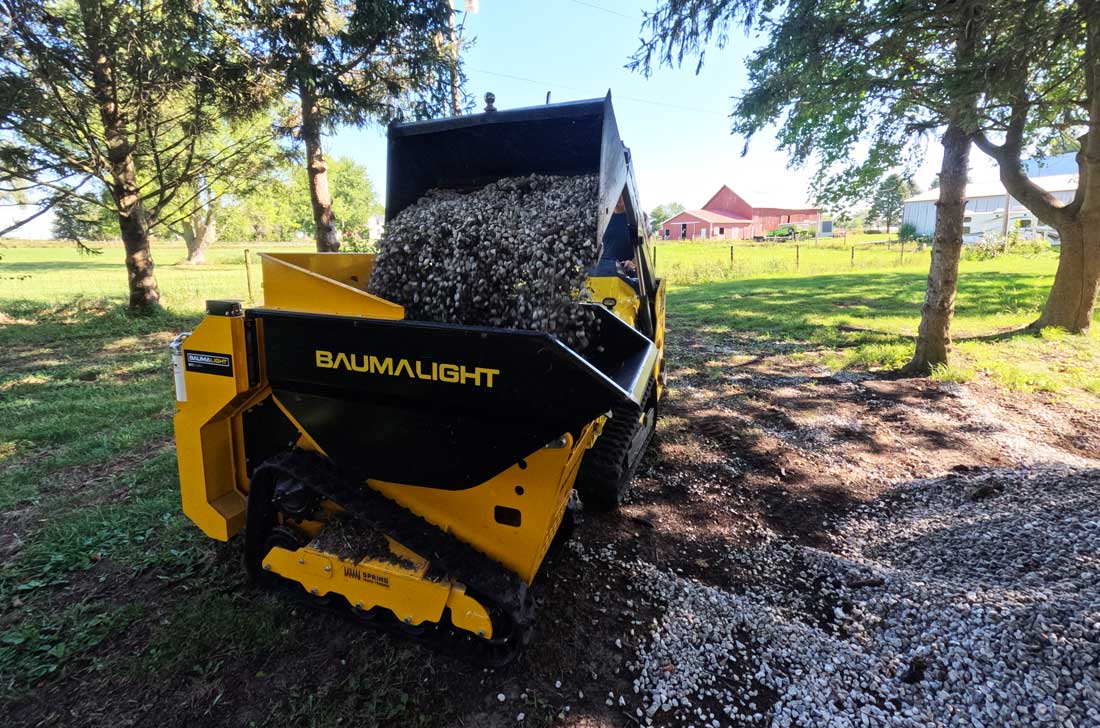

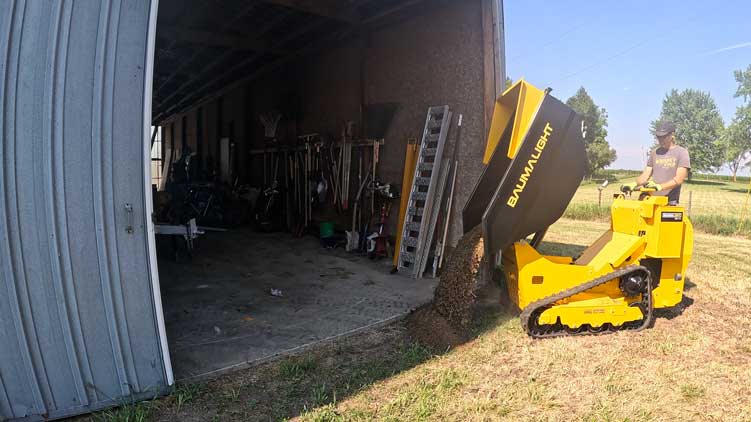

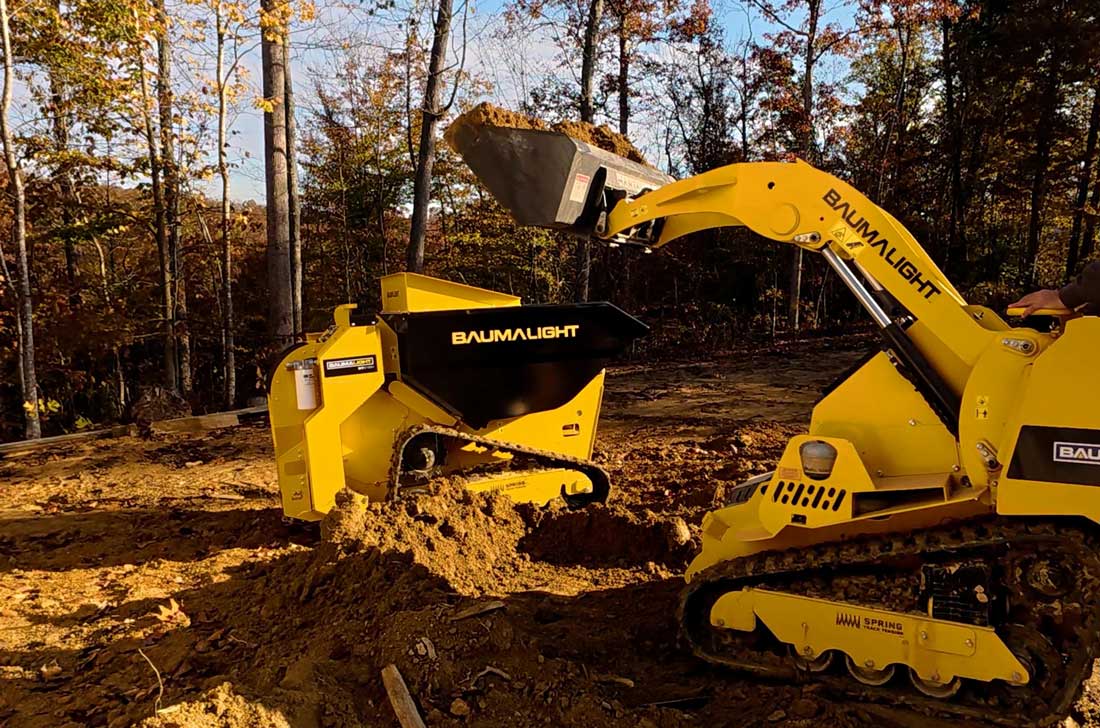

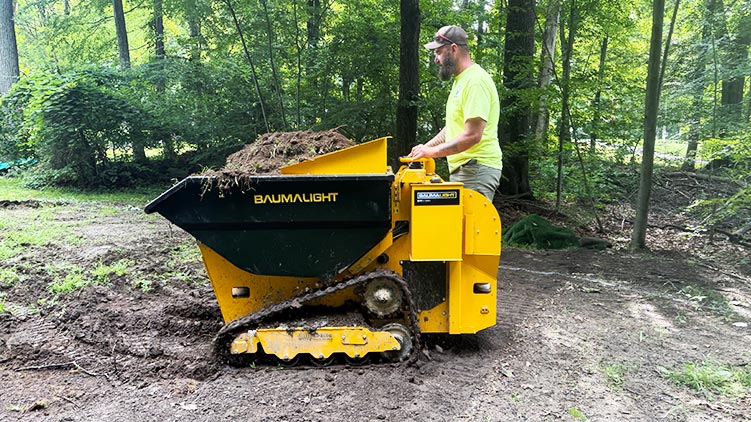

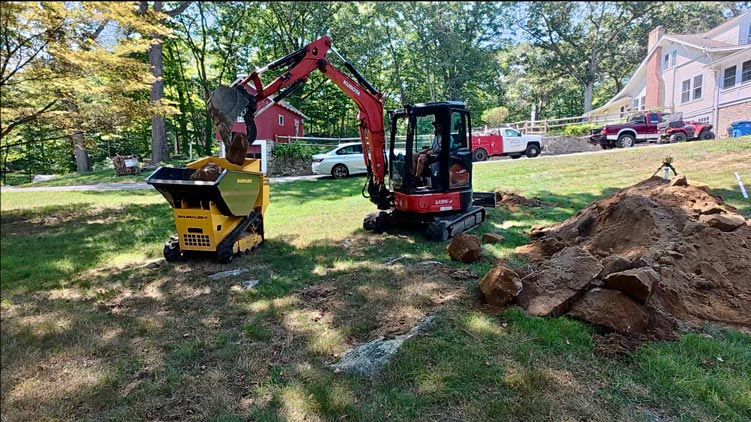

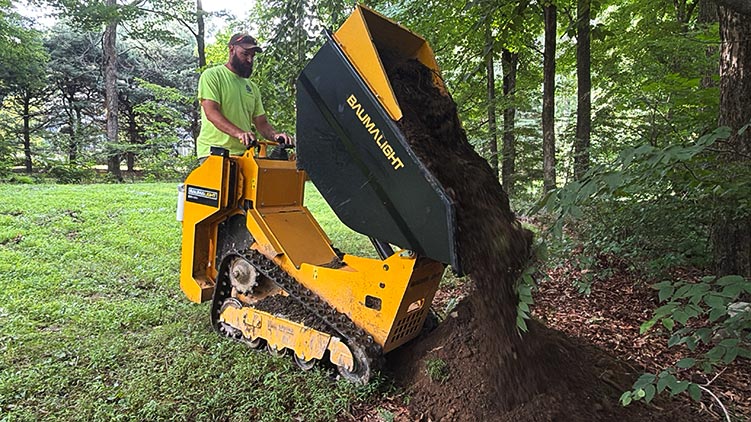

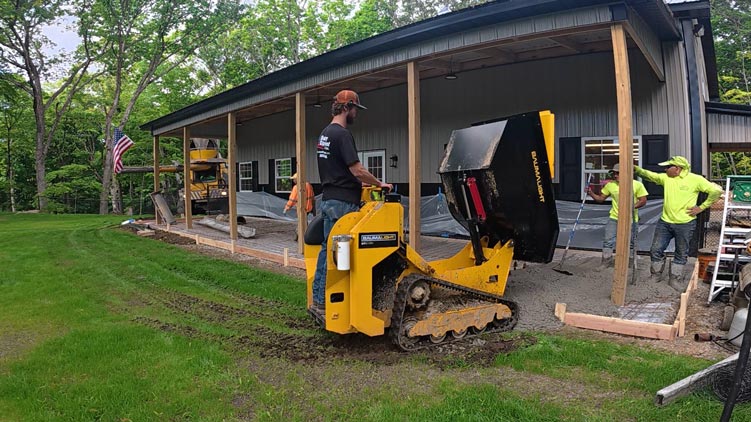

The DT515RH Mini Tracked Dumper is the ideal solution for landscapers to easily move fill and debris through narrow openings and tight spaces. Powered by a 22 HP Honda engine, this Tracked Dumper has a ground speed of 7.8 km/h and offers a ground clearance of 7.4 inches. The Tracked Mini Dumper is built with a heavy duty ¼” thick steel dump bucket and is designed with a similar drive system to the tracked Baumalight Mini Skidsteer where both sides are driven using a dedicated dual piston hydraulic pump. The joystick controls are designed to allow the operator to smoothly operate the bucket while driving at the same time as the bucket is powered by a third axillary hydraulic pump.

KEY FEATURES

Customer submitted media

There are currently no customer photos or video submitted for this Baumalight product.Please check out similar products to see if there are submitted media available for those . Visit our Factory Discount web page to learn how you could participate in our Media Discount Program with your Baumalight product.

SPECIFICATIONS - COMPARISON CHART

	DW51QT	DT515RH
Net Engine HP	-	22.1 HP
Displacement	-	0.688 L
Engine Type	-	GAS
Fuel tank size	-	19
Engine Brand	-	Honda
Model	-	GX690
Drive type	Pull	Hydrostatic
Drive control	-	Joy stick
Carriage	Tires	Tracks
Size	18x8.50-10 6P	150x72x45 (Upgradable-230x72x45)
Travel Speed	-	7.84 KM/h
Hydraulic Reservoir Capacity	-	25 L
Number of pumps	-	3
Bucket control	Hydraulic AUX	Lever
Normal bucket capacity	0.9 Cubic yard (0.71 m3)	0.7 yard (0.55m)
Bucket heaped capacity	1.1 Cubic yard (0.83 m3)	0.9 yard (0.66m)
Bucket Liquid capacity	0.6 Cubic yard (0.5 m3)	0.5 yard (0.38m)
Bucket tip height (Lifting condition)	93.7"	86.4"
Ground clearance	7.25"	7.37"
Overall size (With bucket)	35.5" W x 92.8" L x 48.5" H	35.8" W x 86.6" L x 58.6" H
Shipping Weight	1060 lbs	2456 lbs
