KEY FEATURES

SOLD BY EQUIPMENT DEALERS

All Baumalight products are sold through our network of equipment dealers. For you, this means better product support, after-sales service, maintenance and product warranty from your local, trusted dealership Click here to find a local dealer.

We also have a few online dealers; end users should be prepared to do their own service and warranty work if they decide to buy from a dealer out their area. The same applies for brick-and-mortar stores who sell out of their area.

An exception is that we sell directly to Equipment Rental Stores of most sizes. Click here for more info.

SERVICE AND INSTRUCTIONAL VIDEOS & RIGHT TO REPAIR

Baumalight offers customers a series of helpful service & instructional videos and supports the right to repair. These videos show you how to perform your own trouble shooting and repairs which can save you a lot of down time because many things can be fixed on the spot by end users. Also, after the warranty period is over, a lot of money can be saved if you can do things yourself following simple instructions on trouble shooting, maintenance and repairs.

CLICK THE VIDEO TO LEARN MORE

Locally Available Parts

At Baumalight, we design many of our products using industry - standard parts that are widely available from local supply stores, whether you're in the countryside or the city. Many replacement parts such as bearings, belts, seals, touch - up paint - even cutting teeth - can often be found through local suppliers, not just from us. Click here to Learn More

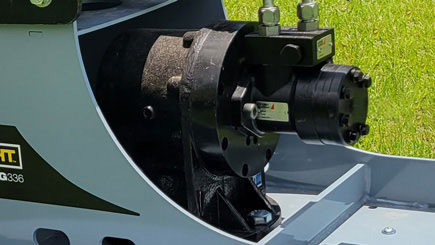

Large Bearing Support

Carburized alloy steel shafts are standard measuring 2.95" in diameter at the bearings and weighing substantial 104lbs. Built with high quality double-lip oil seals and using an ISO class external bearing locknut system.

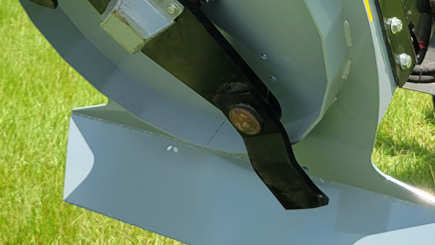

Blade Mount

To secure slasher blades to the blade assembly, Baumalight uses Gr. 8 bolts capped off with castle nuts and cotter pins.

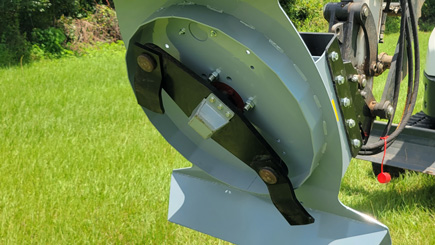

2-Way Model

The 2-Way model features an open deck on both sides for greater versatility.

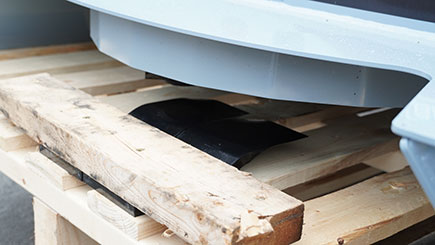

FREE BLADE SET

All CXG336 Rotary Brush Cutter come with a free set of replacement blades on a new purchase. These replacement blades are conveniently secured on the wooden shipping skid.

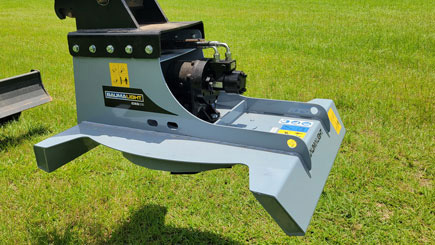

Deck Strength

Taking back your property can be a rough job. We designed and built the deck as a solid platform to take on the task. Built from rugged 3/16 inch steel and then further reinforced with support channels it’s a solid base of operations.

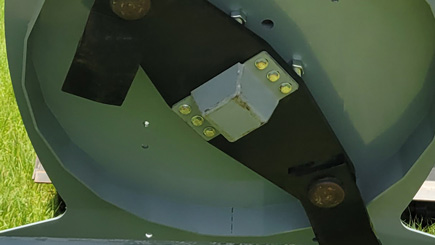

Rotor

Uses 0.75" thick rotor with a bolt-on bottom cover for added durability and easier service access.

Customer submitted media

Down below are photos and video footage taken by Baumalight product owners. Visit our Factory Discount web page to learn how you too can participate in this media discount program.

CUSTOMER PHOTOS

Customer : Andrew Kelley

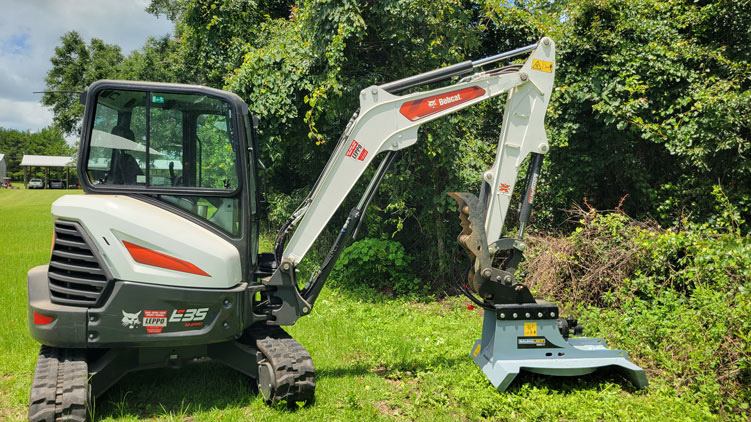

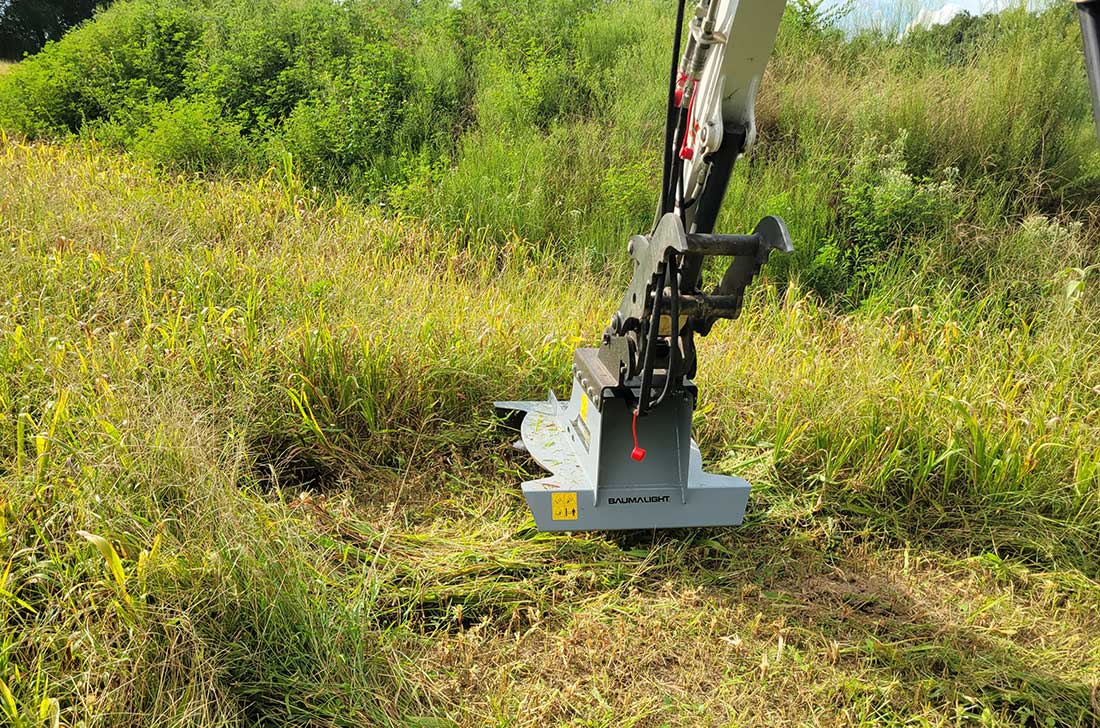

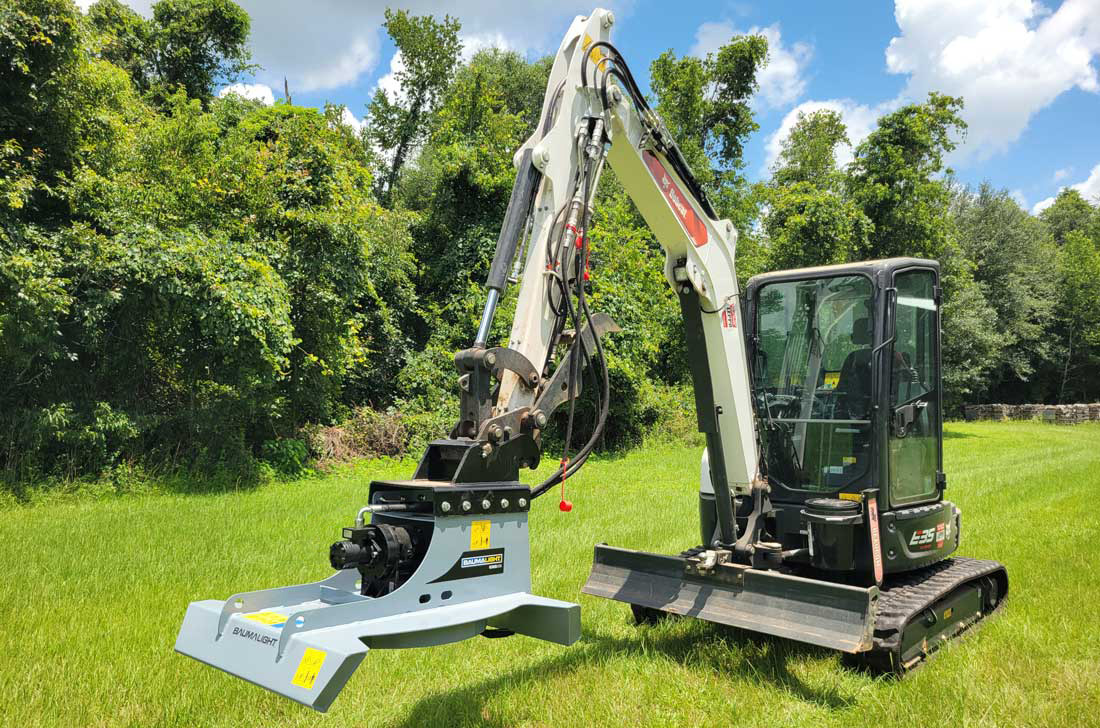

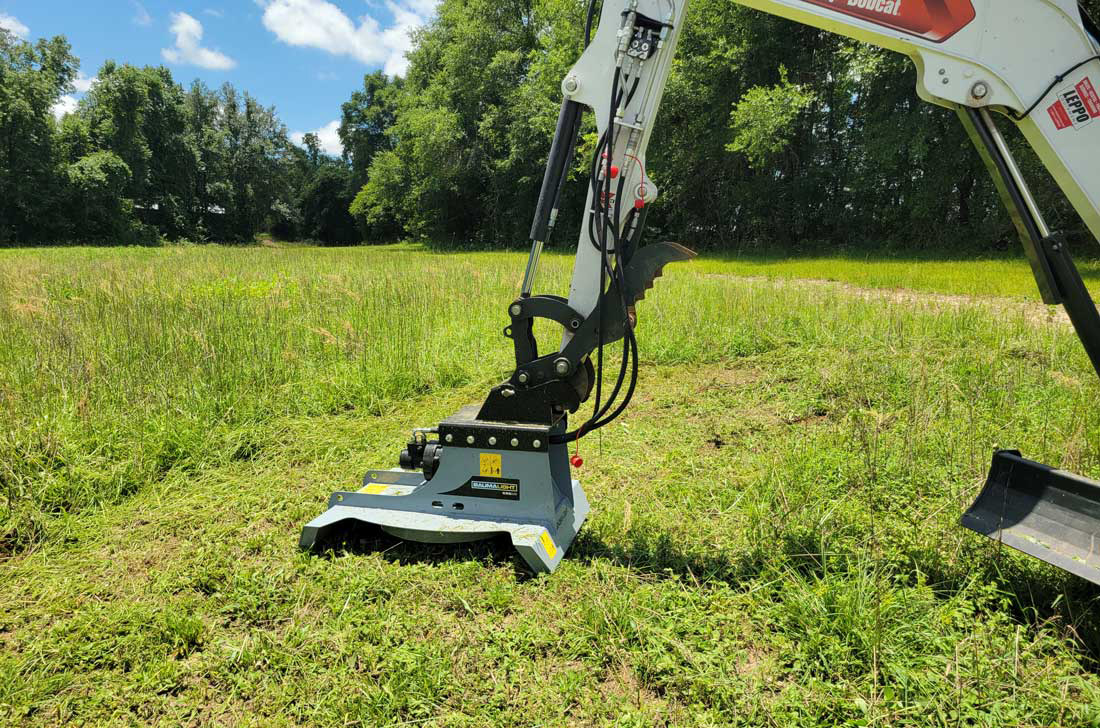

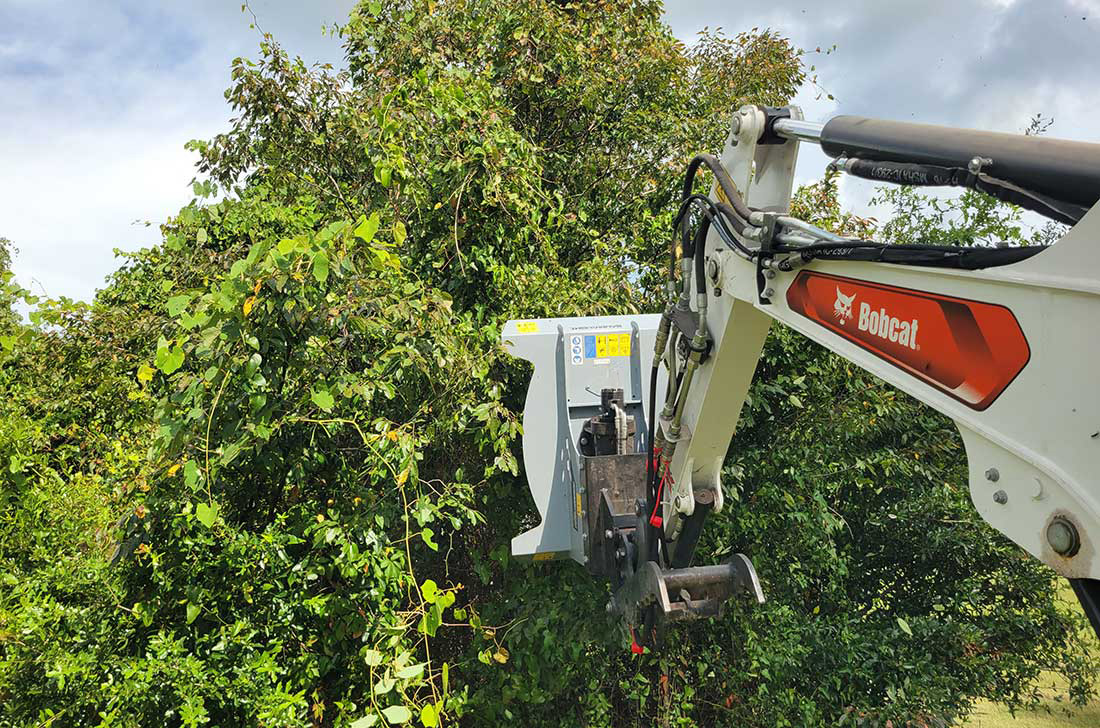

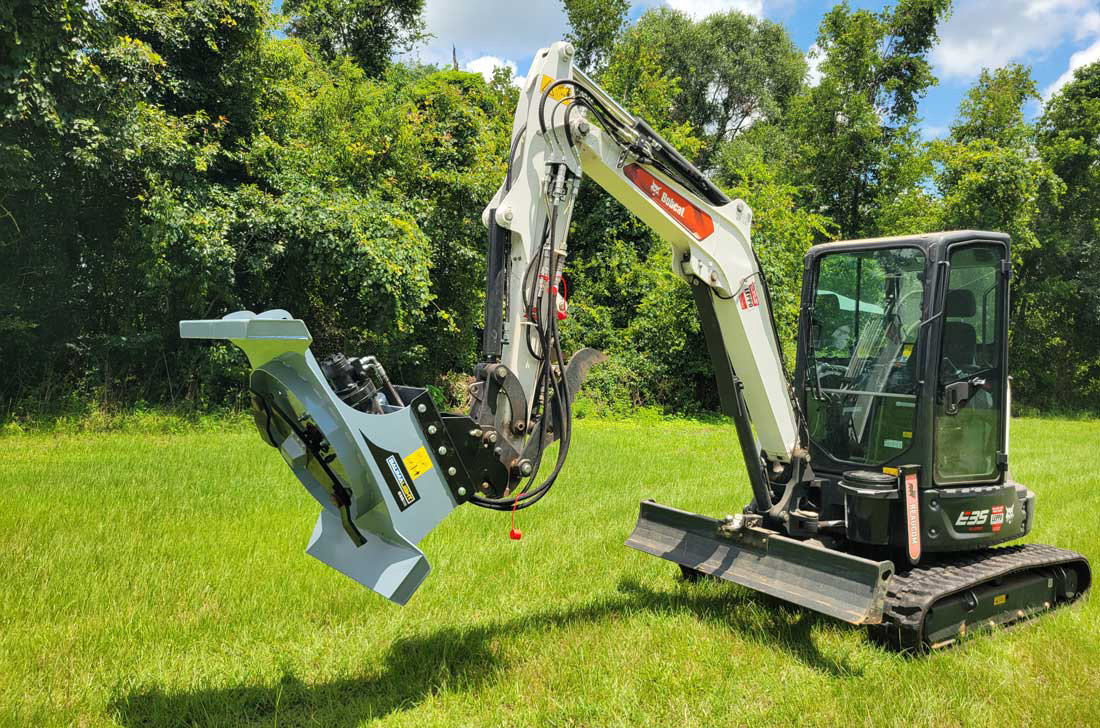

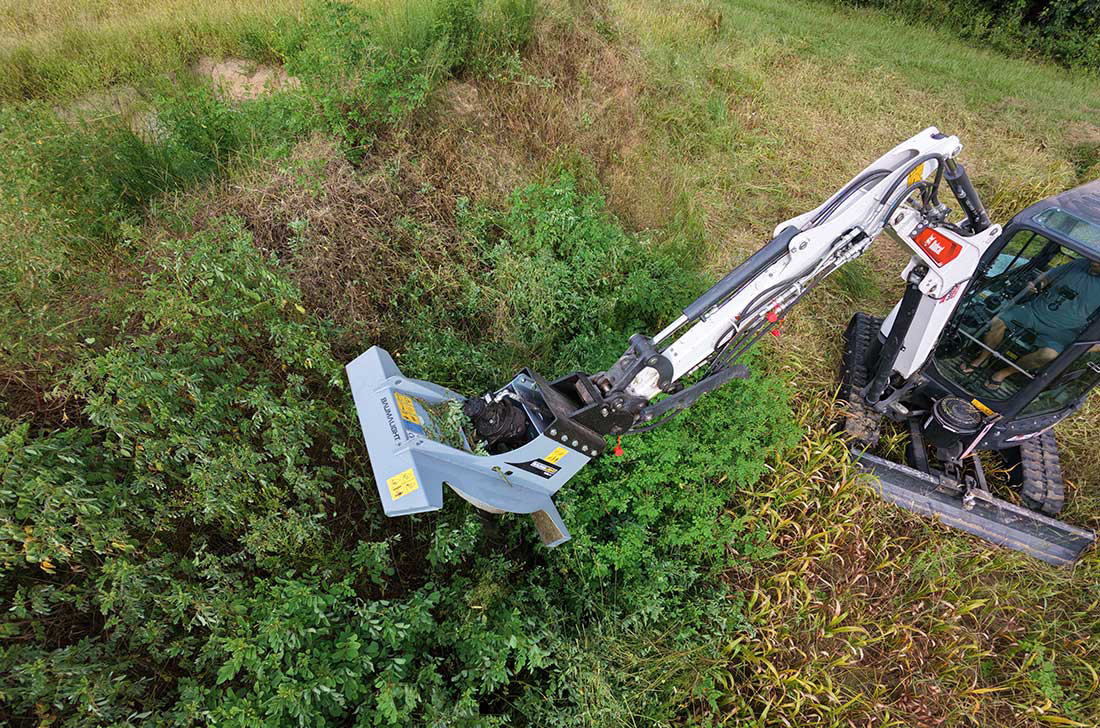

CXG336 Rotary Brush Cutter on Bobcat E35

Customer Field-Test Feedback July 25, 2026
Field testing on a 25 HP excavator showed easier machine operation, reduced engine load, improved grass cutting performance, effective limb pruning up to approximately 1.5 in, and better vertical cutting with the new frame design. The open-side design also improved cutting performance in taller vegetation.

SPECIFICATIONS – COMPARISON CHART

Model No.	CXG336	CXC530	CXC542	CXC550
Baumalight Connection Code	A02	A02	A02	A03
Available Motor Options	M250	HX508, HX510, HX530	HX530, HX550, HX570	HX550, HX570, HX590
Recommended GPM	Check Motor Options Chart	Check Motor Options Chart	Check Motor Options Chart	Check Motor Options Chart
Maximum Brush Size	4"	3.5"	5"	6"
Discharge Protection	Open Front and Back	Open Front and Back	Open Front and Back	Open Front and Back
Path Width	47"	40"	50"	67"
Cutting Width	36"	30"	42"	50"
Low Cutting Height	2.5"	2.5"	2.5"	2.5"
Number of Blades	2	3	3	3
Slashes per Second	80	80	80	90
Attachment Type	Bolt-On	Bolt-On	Bolt-On	Bolt-On
Maximum HP	Check Flow & PSI on Carrier	Check Flow & PSI on Carrier	Check Flow & PSI on Carrier	Check Flow & PSI on Carrier
Case Drain	-	Critical	Critical	Critical
Minimum Tracked Excavator Ton	3 ton	2 ton	3 ton	8 ton
Minimum Wheeled Excavator Ton	4.5 ton	3 ton	4.5 ton	10 ton
Maximum Tracked Excavator Ton	6 ton	10 ton	15 ton	20 ton
Maximum Wheeled Excavator Ton	7 ton	11 ton	17 ton	24 ton
Deck Structure	3/16" steel	1/4" steel	1/4" steel	1/4" steel
Unit Weight	400 lbs	550 lbs	640 lbs	1,380 lbs
Model No.	CXG336	CXC530	CXC542	CXC550
