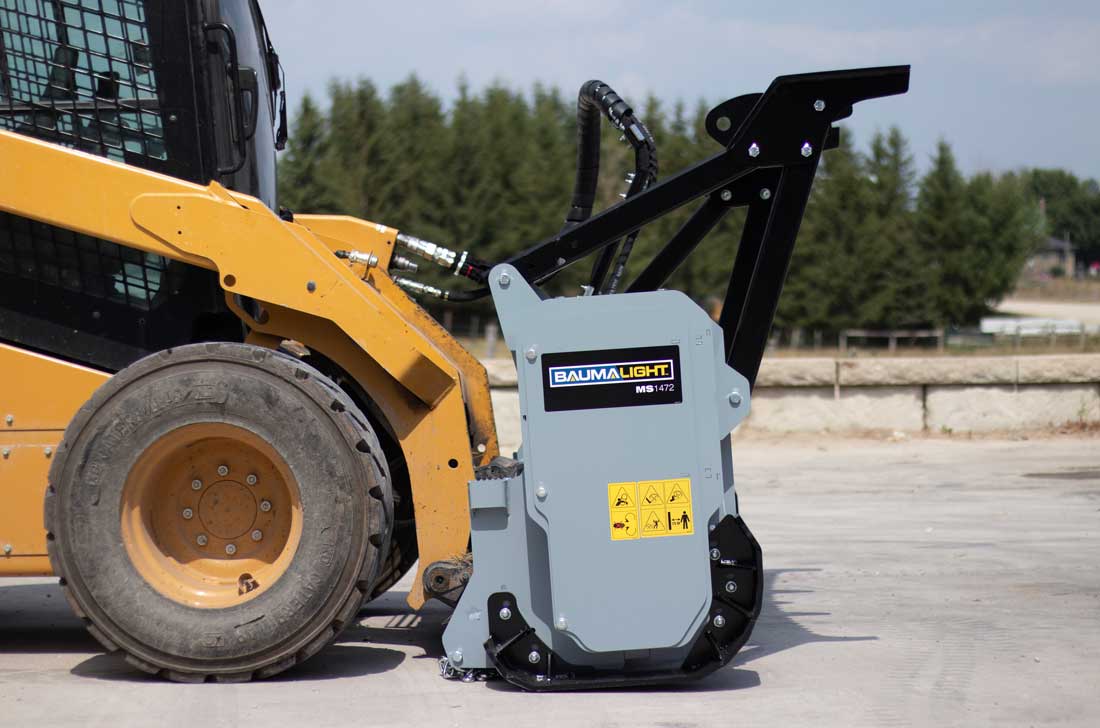

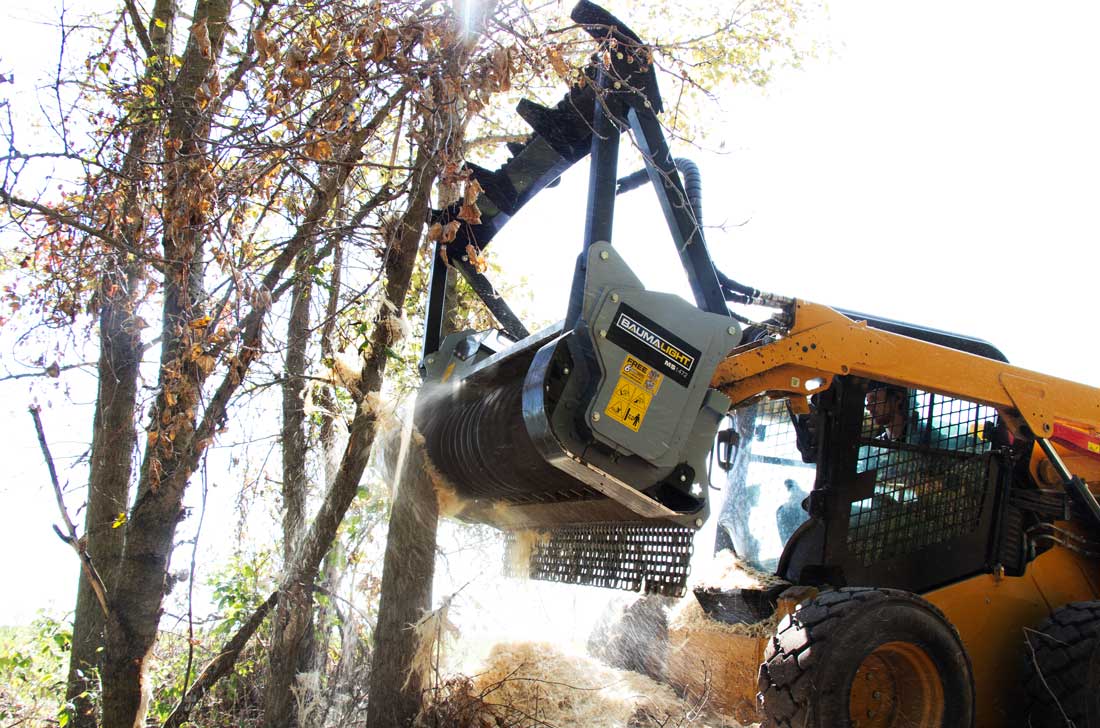

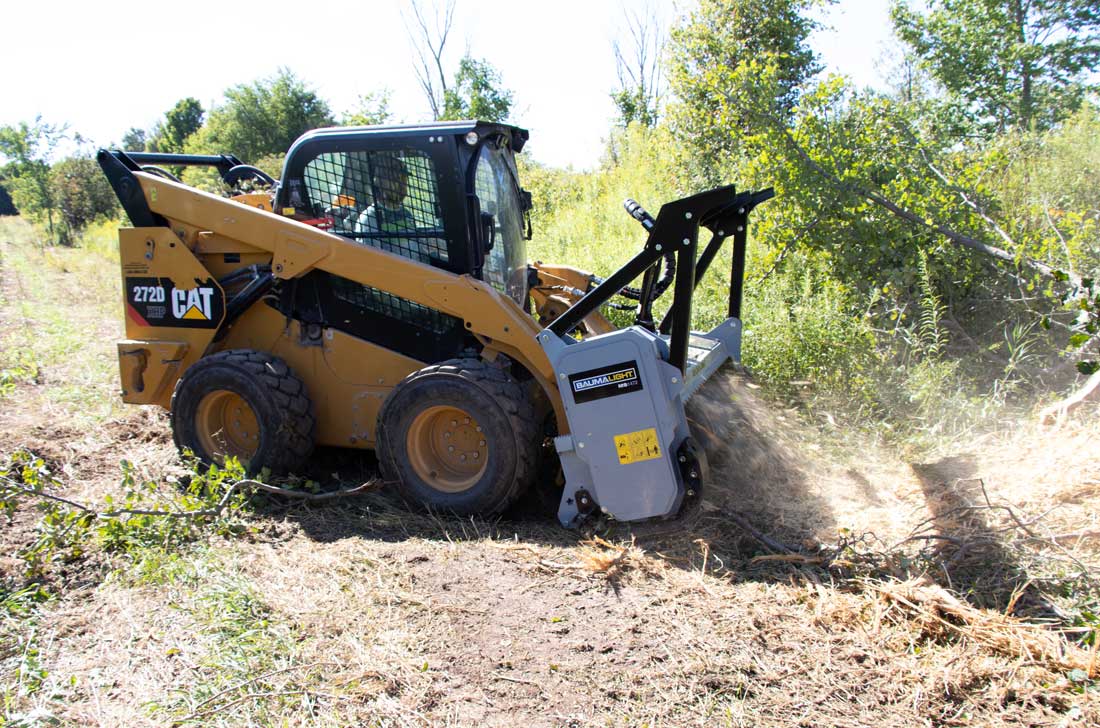

Baumalight MS1472 1400 series mulcher for Skid Steer

SOLD BY EQUIPMENT DEALERS

All Baumalight products are sold through our network of equipment dealers. For you, this means better product support, after-sales service, maintenance and product warranty from your local, trusted dealership Click here to find a local dealer.

An exception is that we sell directly to Equipment Rental Stores of most sizes. Click here for more info.

SERVICE AND INSTRUCTIONAL VIDEOS & RIGHT TO REPAIR

Baumalight offers customers a series of helpful service & instructional videos and supports the right to repair. These videos show you how to perform your own trouble shooting and repairs which can save you a lot of down time because many things can be fixed on the spot by end users. Also, after the warranty period is over, a lot of money can be saved if you can do things yourself following simple instructions on trouble shooting, maintenance and repairs.

CLICK THE VIDEO TO LEARN MORE

Locally Available Parts

At Baumalight, we design many of our products using industry - standard parts that are widely available from local supply stores, whether you're in the countryside or the city. Many replacement parts such as bearings, belts, seals, touch - up paint - even cutting teeth - can often be found through local suppliers, not just from us. Click here to Learn More

If you want front-mount visibility and easy operation but your tractor lacks hydraulic flow, the P40 PTO Power Pack is a smart solution. Delivering up to 40 GPM at 4000 PSI, the P40 provides high-flow hydraulic power through your PTO. It features a built-in cooling radiator, a 160L (40-gallon) oil capacity to keep attachments running cool, and weighs 1700 lbs (with oil) for added front-end ballast. A case drain connection is also included, allowing compatibility with even more attachments. Click here

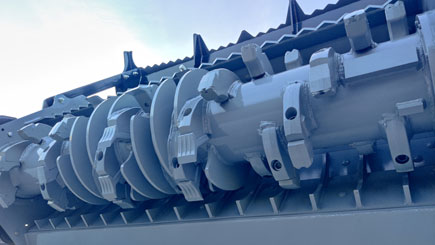

REPLACEABLE BOLT-IN LINER

Save time by easily replacing the AR400 steel wear plates on the MS1472 without needing to remove the rotor.

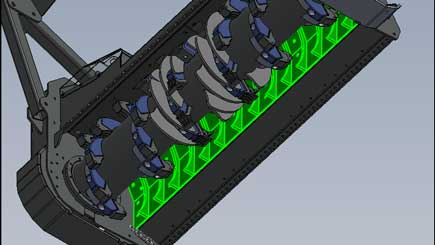

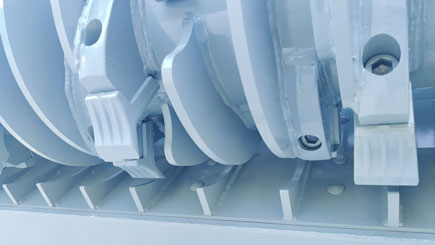

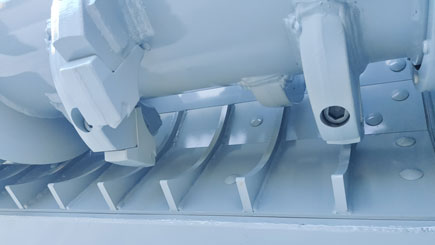

liner teeth

Engineered to keep material flowing with minimal jamming, liner teeth produce a finer, more consistent mulch. This reduces the number of passes required, improving processing efficiency and boosting overall production.

Balanced Performance with P11000 and R9000 Teeth

The 1400 series rotor is equipped with both P11000 and R9000 teeth. A total of 14 P11000 teeth are installed in the center section of the rotor, positioned 7 on each side from the center, while the remaining 24 teeth across the rotor are R9000 teeth. and placed to the side where stones are harder to watch out for and where in general, there is smaller brush to mulch.

The Planer-style P11000 teeth in the middle are placed where an operator normally uses to take down bigger material, the sharpenable teeth deliver efficient mulching and aggressive cutting while sharp. In contrast, the Ripper-style R9000 teeth provide a shredding mulching action that works very well on smaller material. Their double-tipped V-shaped design makes them more resistant to impacts with hard objects such as stones, making them ideal for mulching below grade and along fence lines.

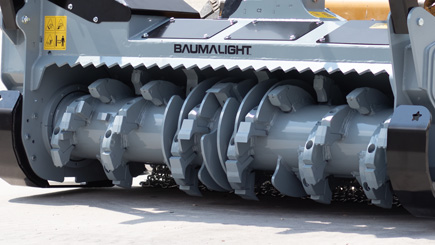

BITE LIMITING ROTOR FOR 11000 SERIES

The Depth Control system on the Baumalight 1400 series mulchers will improve the efficiency of your land-clearing operations. The 1400 series mulcher rotors are engineered to regulate the depth of bite and guide the flow of material while preserving energy for optimal output with less stalling because you can achieve consistent particle size for faster cutting, and better fuel efficiency. We have provided the depth control system for 24" in the middle of the rotor, positioned 12" apart from the center, to ensure balanced and efficient performance. The helical teeth arrangement of our mulcher effectively feeds material toward the center of the drum, while depth control rings guarantee the best possible infeed

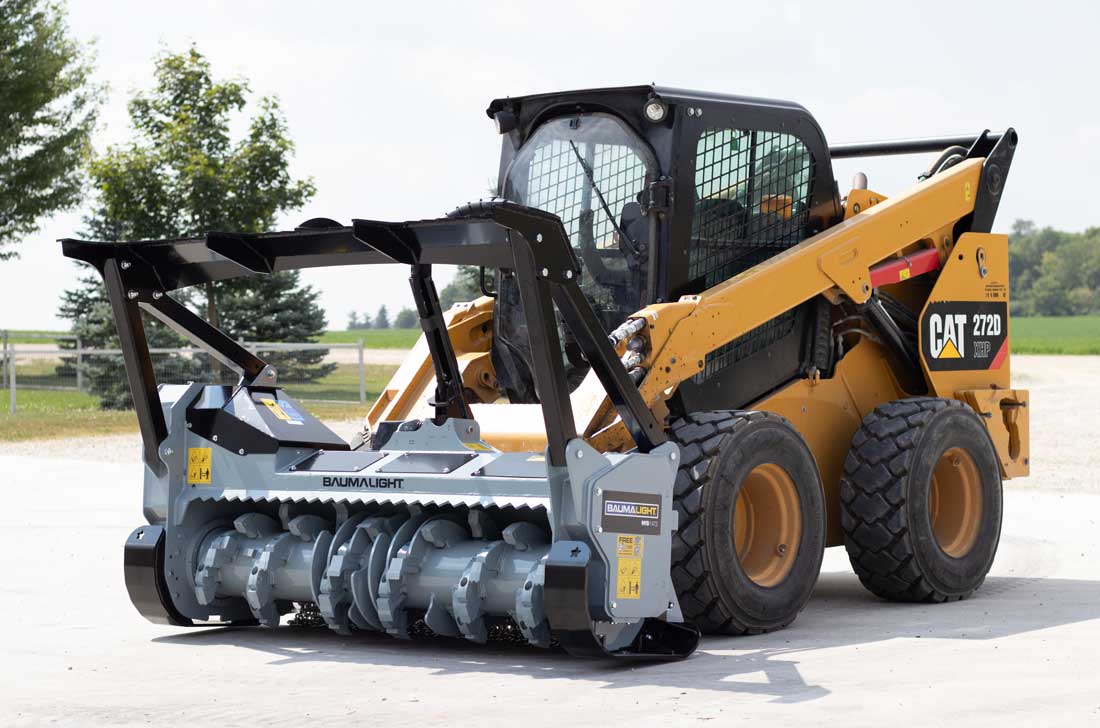

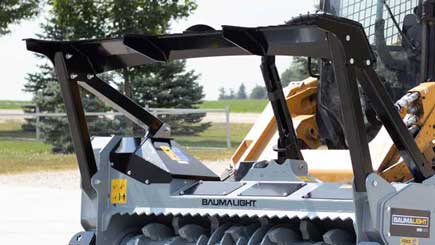

Integrated push bar

When push comes to shove, the integrated push bar helps control

Directional felling hook

Built into the pusher bar, the directional felling hook will directionally control wayward trees, sprawling clumps and low hanging limbs.

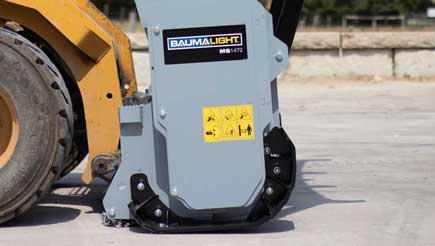

ADJUSTABLE SKID SHOES

Adjustable skid shoes allow the operator to adjust the cutting height for optimal clearing performance.

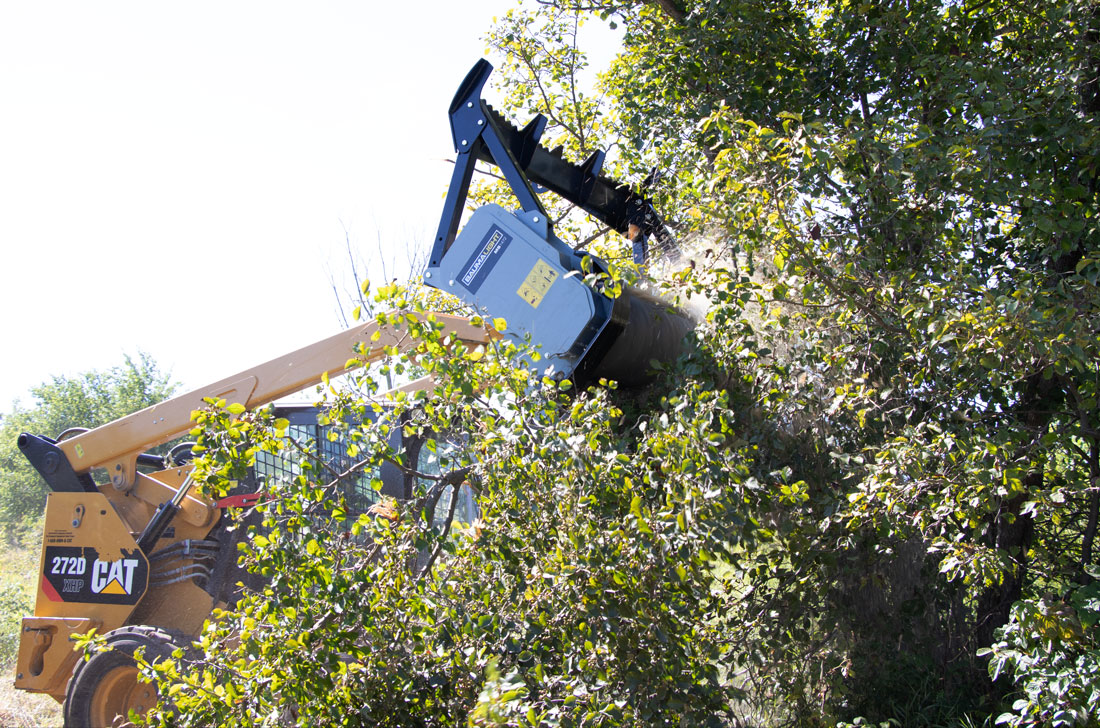

ROLL BACK TO FELL STANDING TREES

The MS1472’s frame is angled so that you can roll back the Brushy Mulcher, pulling back the pusher bar so that you can fully engage the mulching head. This allows the operator to use the mulching head to fell standing trees.

SPRING LOADED HOSE SUPPORT

Take full advantage of the forward curl and roll back of the MS1472 without risking expensive damage to the hoses. Unique to the Baumalight Brush Mulcher, the spring loaded hose support prevents the hoses from falling into harm’s way during forward curl.

CURVED HOSE BRACKET

The new curved host bracket provides better support of the hose while reducing the risk of pinching or chafing.

ARMOURED AND SLEEVED

Baumalight hoses are sleeved and wrapped offering protection for the operator and hoses. A pivoting arm is also standard with a greasable pin keeping the slack out of the way which protects the hoses from dangerous pinching and strain.

CENTERED ADJUSTABLE HOSE SUPPORT

To accomodate for different skidsteers that have the couplers on different sides, the MS1472's hose support is positioned close to the centre of the mulching head and has an adjustable hose.

ADJUSTABLE BELT TENSIONER

The adjustable belt tensioner ensures the proper tension of your belts, with no extra idler wheel that could wear out. Simply loosen the bolts and raise the motor mount to tighten the belt.

TWO-SPEED MOTOR

The MS1472 is only available with a variable 2-speed motor option, this maximizes the rotor speed and torque to account for changing mulching material.

PRESSURE GUAGE

Large PSI pressure guage for maintaining the optimal flow that gives you a clear indication of the most efficient brush mulching performance.

CASE DRAIN – VENT TO ATMOSPHERE

To prevent pressure relief activation on the motor seal, the MS1472 comes with a case drain line and a vent to atmosphere relief valve. In the event there is a spike in pressure in your hydraulic lines, the case drain will relieve the pressure and drain it back into the return line and back to the tank. If the connection of the case drain (third line) is missed or if the line is blocked, then the case drain will vent to notify you. A properly installed case drain protected by a vent to atmosphere relief valve will save the work of replacing your shaft seal and save you from down time of unexpected maintenance. To learn more CLICK HERE about the case drain line.

Wire Protection Kit

If you are mulching and you catch some old fence wire, it can really cause damage to the unit if the wire slips over the edge of the rotor and gets wrapped around the shaft. The wire can get bunched against the bearings, causing major damage. Our wire protection kit contains a welded raised area on the end of the rotor that protects the shaft and prevents wire from getting in.

Chain Curtain

The rear of the unit is guarded by a 3/8” thick chain curtain so standing brush enters and mulched debris exits.

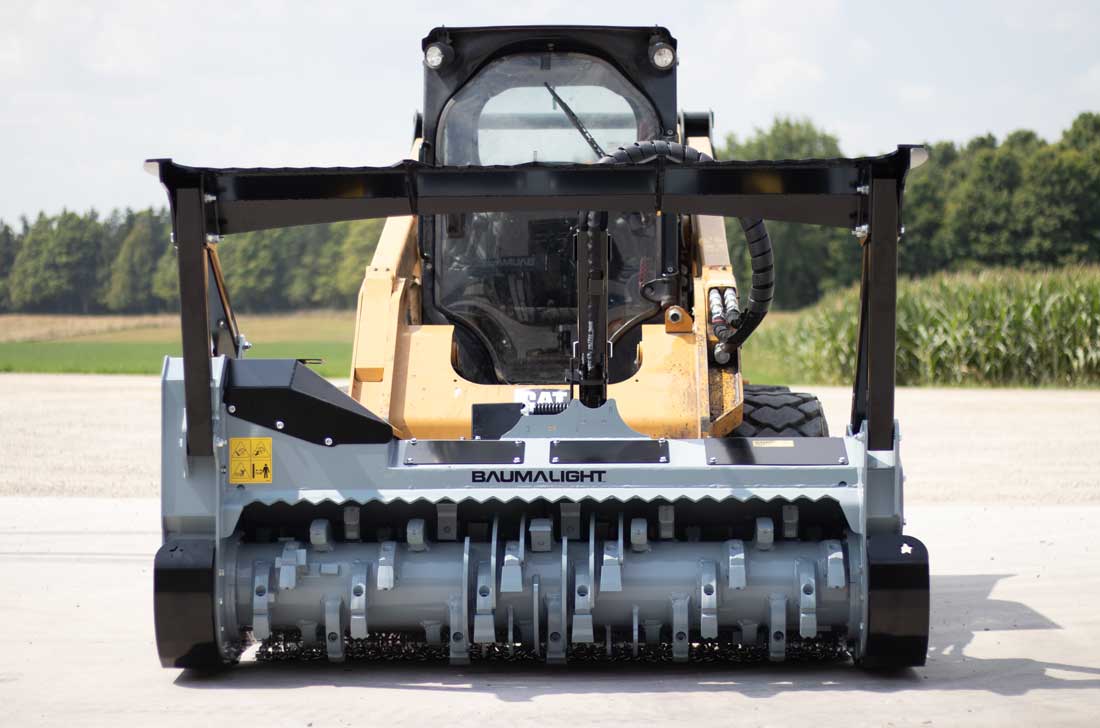

heavy duty frame

Now completely redesigned for the 900 series Brush Mulcher, the heavy duty steel frame is constructed with T1 alloy tool steel.

HEAVY DUTY SKIDSTEER PLATE

Also redesigned for the 900 Series Brush Mulcher, the skidsteer plate is constructed with heavy duty steel with lots of gusseting and reinforcements.

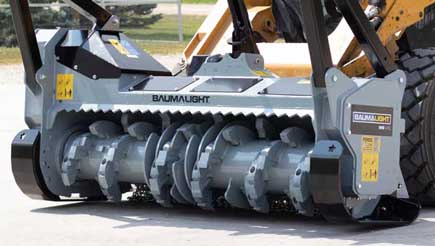

Powdered Coated

Our powder coat finish is much tougher than conventional paint to stand up to the rigors of mulching and helps prevent rusting.

STEP GRIP IN FRAME

The powder coated frame has multiple anti-slip pads and laser cut steps, giving the operator a secure footing for easy entry and exit from the cab.

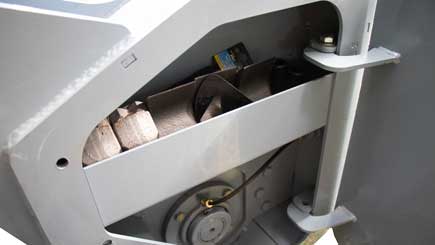

6 FREE TEETH

All MS1472 Brush Mulchers come with a free set of 6 replacement teeth. These replacement teeth can be convenienty stored in the enclosed spare tool compartment.

P11000 tooth sharpening gauge

Each 1100 series mulcher ships with a sharpening gauge so you can check and make sure the angle stays correct from time to time

ENHANCED operator VISIBILITY

The improved design of the MS1472 mulcher head now allows the operator better visibility to the area you are mulching.

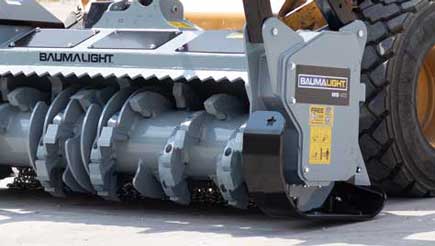

IMPROVED WEIGHT MANAGEMENT

To improve the weight management of the Brush Mulcher, the MS1472 is now designed with the rotor closer to the carrier. This unique design feature allows for smaller carriers to be able to manage a larger mulcher.
