BMS530 Barrier Mower for Skidsteer
BMS530 Barrier Mower for Skidsteer

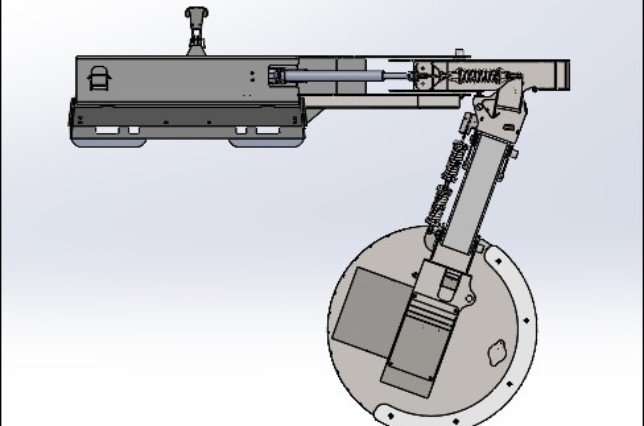

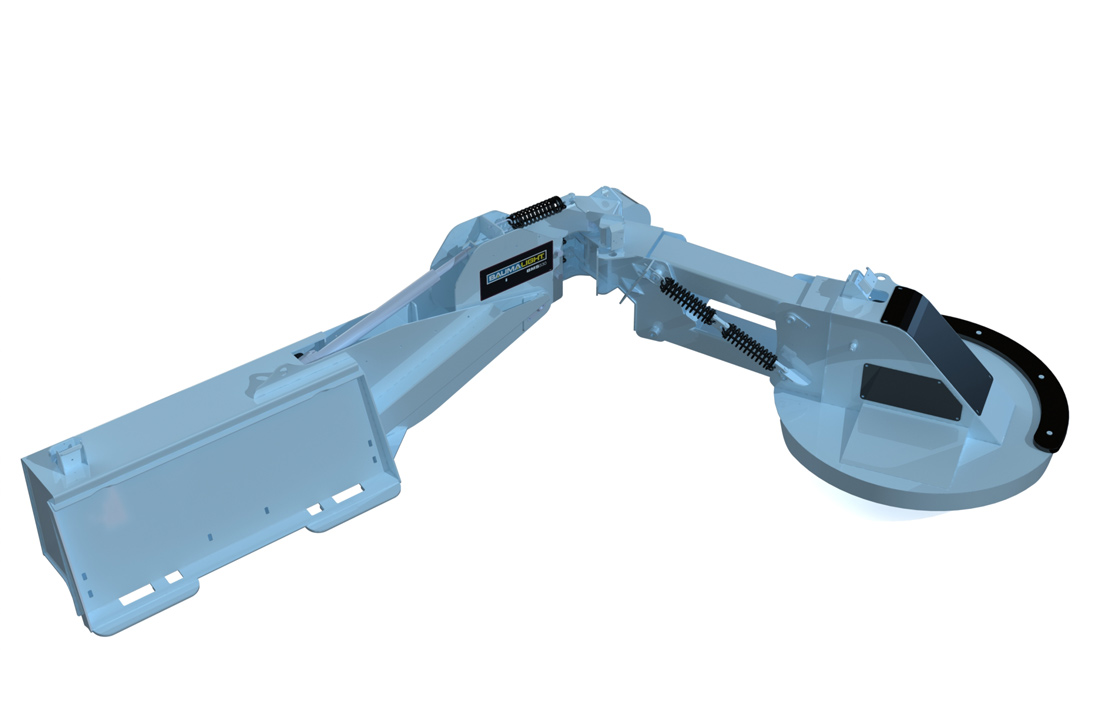

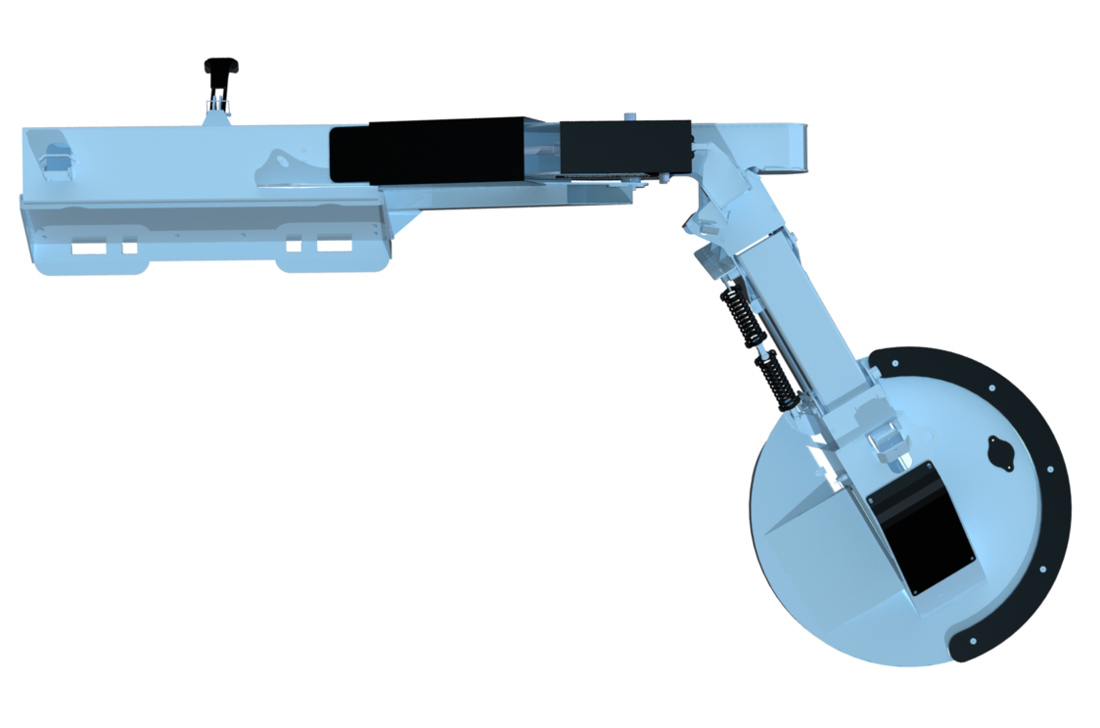

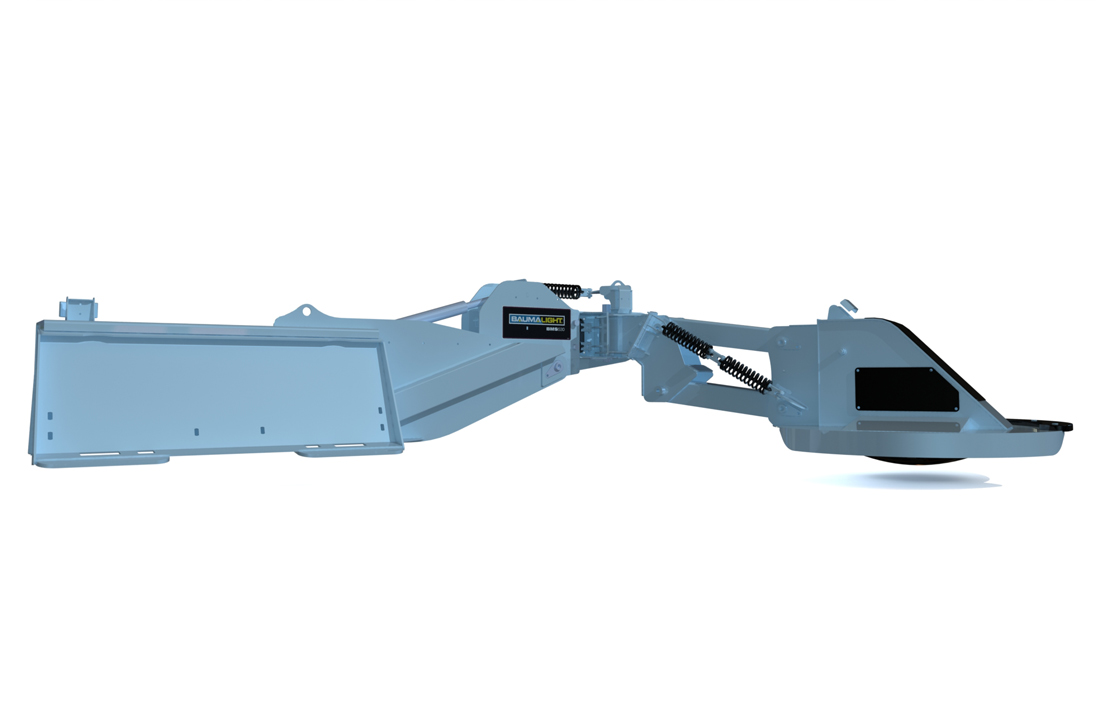

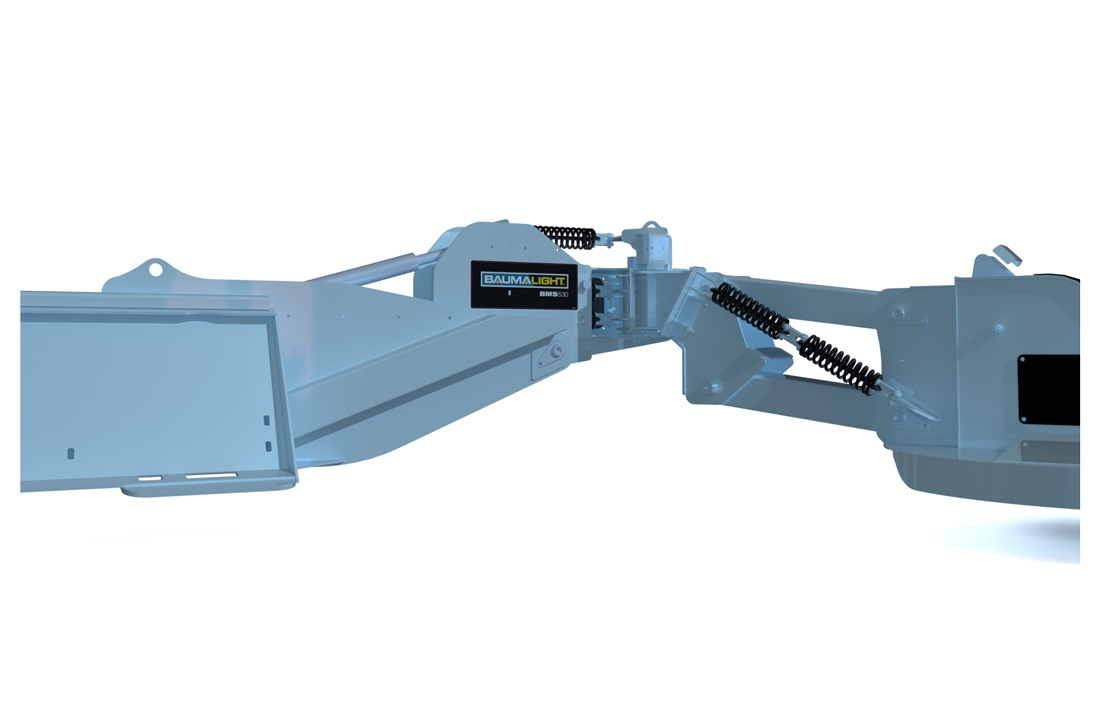

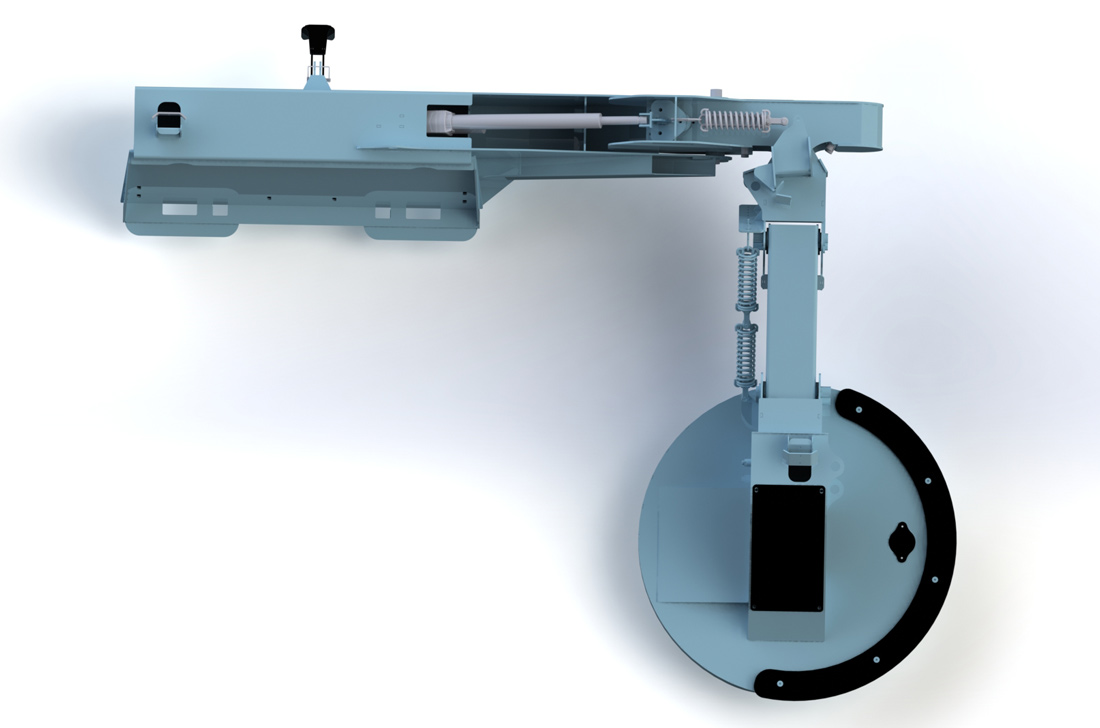

Designed for regular Skid Steers, the BMS530 is in preproduction and the goal is to design a unit that is capable of efficiently cutting through long, heavy grass or large-diameter brush. Equipped with two AR400 blades featuring a 40" path width, the BMS530 Barrier Mower is ideal for maintaining fence lines, guardrails, orchards, and vineyards. This fence line mower easily manoeuvres around obstacles such as fence posts, crash barriers, or trees. The Barrier Mower can cut grass, but it's built to do more than just grass as it can cut small brush as well.

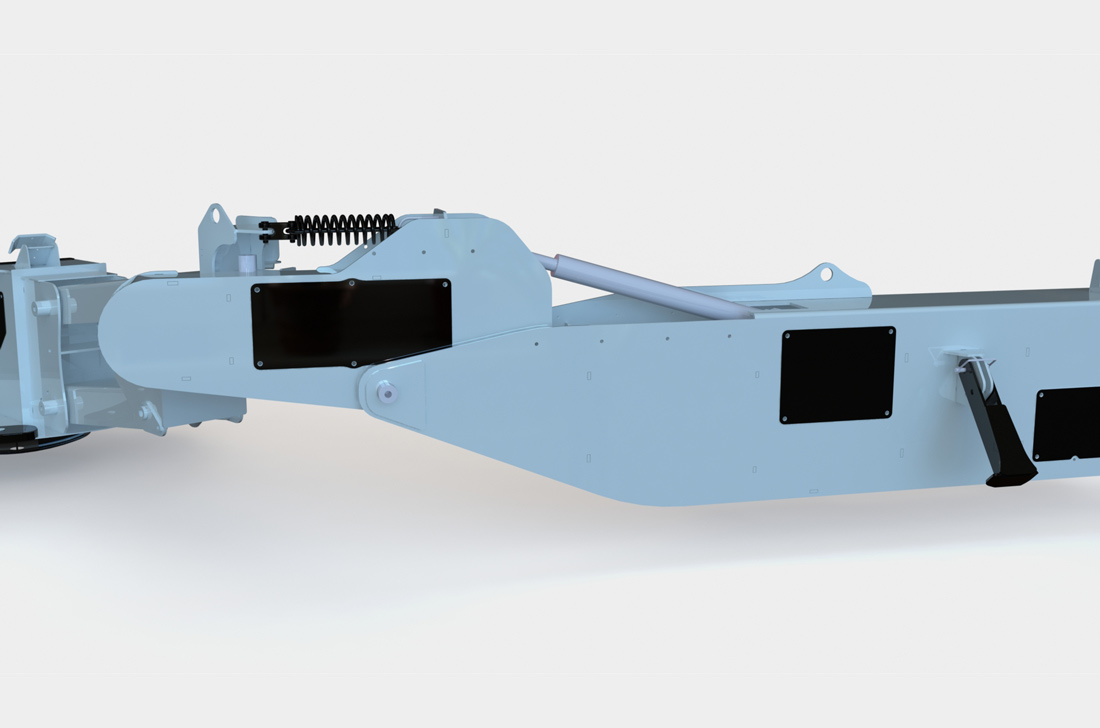

The unit's rear side, with a 40" open mouth, is protected by a sheet metal guard that helps discharge cut material away from the operator.
It comes standard with an electrical tilt actuator which is a nice feature if you have rolling terrain.
SOLD BY EQUIPMENT DEALERS
All Baumalight products are sold through our network of equipment dealers. For you, this means better product support, after-sales service, maintenance and product warranty from your local, trusted dealership Click here to find a local dealer.
An exception is that we sell directly to Equipment Rental Stores of most sizes. Click here for more info.
SERVICE AND INSTRUCTIONAL VIDEOS & RIGHT TO REPAIR
Baumalight offers customers a series of helpful service & instructional videos and supports the right to repair. These videos show you how to perform your own trouble shooting and repairs which can save you a lot of down time because many things can be fixed on the spot by end users. Also, after the warranty period is over, a lot of money can be saved if you can do things yourself following simple instructions on trouble shooting, maintenance and repairs.
CLICK THE VIDEO TO LEARN MORE
There are currently no customer photos or video submitted for this Baumalight product. Please check out similar products to see if there are submitted media available for those . Visit our Factory Discount web page to learn how you could participate in our Media Discount Program with your Baumalight product.
| Model No. | BMM230 | BMS530 |
|---|---|---|
| Available Motor Options | C508 | |
| Max Brush Felling Size | 1" | 1" |
| Discharge Protection | Sheet metal Curtain & Back | Sheet metal Curtain & Back |
| Reach (Skidsteer plate to far side of cutting disk) | ||
| Cutting Width | 32" | 40" |
| Low Cutting Height | 3" | 3" |
| Number of Blades | 2 | 2 |
| Attachment Type | Universal Mini Skidsteer | Skidsteer |
| Min Carrier Weight | 2,100 - 4,000 | 3,100 - 10,000 |
| GPM | 8-15 | 12-25 |
| PSI | 2700-4000 | 2700-4000 |
| Minimum Required Amps | 30 amps Video |
30 amps Video |
| System Protection | Carrier hydraulic relief system | Carrier hydraulic relief system |
| Dimensions (LxWxH) | 90"x40"x30" | 137"x72"x29" |
| Deck Structure | 4,000 lb | |
| Unit Weight |
